PRODUCT INFO ID: 2635

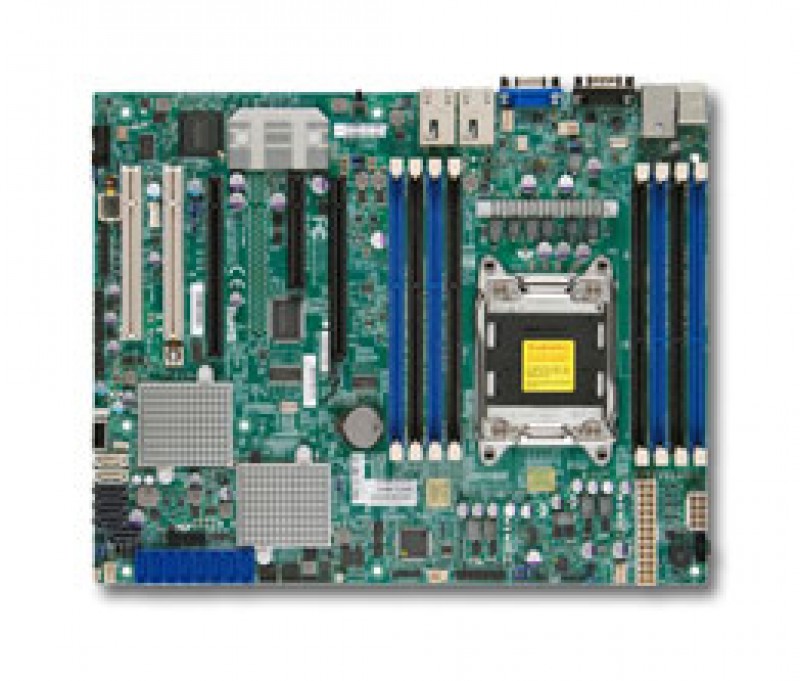

Supermicro MBD-X9SRH-7TF, Single SKT, IntelC602J Chipset, SATA, LSI2308 SAS2, 2x10GbE, IPMI Bulk

Name: Supermicro MBD-X9SRH-7TF, Single SKT, IntelC602J Chipset, SATA, LSI2308 SAS2, 2x10GbE, IPMI Bulk
Brand: Supermicro
SKU: MBD-X9SRH-7TF-B
Price: 2777.43 PLN
Availability: OutOfStock

Manufacturer

Supermicro

Part number:

MBD-X9SRH-7TF-B

EAN:

672042117314

Availability: 0 pcs. | Delivery: upon request

2258.07 zł net2777.43 zł gross

Quantity:

Details

Specification

Reviews (0)

Product SKUs

MBD-X9SRH-7TF -B	X9SRH-7TF (Bulk Pack)


Physical Stats

Form Factor	ATX
Dimensions	12" x 9.6", (30.5cm x 24.4cm)


Processor/Cache

CPU	Single Socket R (LGA 2011) Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family^† (up to 12 cores and up to 135W)
Note	† BIOS version 3.0 or above is required † E5-1600 series CPU does not support LRDIMM type memory


System Memory

Memory Capacity	8x 240-pin DDR3 DIMM slots Up to 512GB DDR3 ECC LRDIMM Up to 256GB DDR3 ECC RDIMM Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel C602J chipset (7 Years Long Life)
SATA	SATA3 (6Gb/s) and SATA2 (3Gb/s) RAID 0, 1, 5, 10
SAS	SAS2 (6Gb/s) via LSI 2308 SW RAID 0, 1, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450RA0BX Intel Node Manager support
Network Controllers	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	Matrox G200eW 16MB DDR2 graphics
Super I/O	Nuvoton NCT 6776F


Input / Output

SATA	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s)
SAS	8 SAS2 ports (6Gb/s)
LAN	2 RJ45 10GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A)
Video	1 VGA port
Keyboard/Mouse	2 PS/2 Keyboard/Mouse ports
Serial Port / Header	2 serial ports (1 rear, 1 header)
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM Header


Chassis ( Optimized for X9SRH-7TF )

1U Chassis	CSE-113MTQ-330CB CSE-813MTQ-350C CSE-813MTQ-R400CB
2U Chassis	CSE-823TQ-653LPB CSE-826E16-R500LPB CSE-826TQ-R500LPB
3U Chassis	CSE-833T-650B CSE-833T-653B CSE-836E16-R500B CSE-836TQ-R500B
Tower / 4U Rackmount	CSE-842TQ-665B CSE-842TQ-865B
Important Chassis Notes	To support motherboards based on Intel® Xeon® processor 5500/3500 series, Revision K or later chassis is recommended for most models. Please talk to your sales representative for details.


Expansion Slots

PCI-Express	1x PCI-E 3.0 x16 slot 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 2.0 x4 (in x8) slot
PCI	2x PCI-32 slots


System BIOS

BIOS Type	64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup


Management

Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / APM Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Five 4-pin fan headers supporting up to 5 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I²C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header Chipkill support RoHS, Halogen Free

Form Factor	ATX
Dimensions	12" x 9.6"
CPU Socket	LGA 2011 (Socket R)
# of CPU sockets	1
Supported CPU's	Intel Xeon E5-2600v2 Intel Xeon E5-2600 Intel Xeon E5-1600v2 Intel Xeon E5-1600
Chipset	Intel C602J Patsburg
Memory Type	DDR3 ECC LRDIMM DDR3 ECC RDIMM DDR3 ECC UDIMM DDR3 non-ECC UDIMM
Memory Speed	1866 MHz 1600 MHz 1333 MHz 1066 MHz
# of DIMM's	8
Max Memory Size	512 GB
Integrated GPU	Matrox G200eW
# of PCIe x16 3.0	1
# of PCIe x8 3.0	1
# of PCIe x4 2.0	1
# of USB Ports	2 x USB 2.0 (rear) 6 x USB 2.0 (header) 1 x USB 2.0 Type A
# of SATA Ports	6
# of SATA DOM power	1
# of SAS Ports	8
Storage Controllers	2 x AHCI iSATA 6Gb/s 4 x AHCI iSATA 3Gb/s LSI 2308 6Gb/s
Integrated RAID	0,1,5,10
Hardware RAID	0,1,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 10GbE Ports	2 x Base-T
Network Controllers	Intel x540 Dual Port 10 Gigabit Base-T
Integrated BMC	IPMI 2.0 KVM-over-LAN Virtual Media over LAN IPMI Dedicated RJ45 PHY
BMC chip	Nuvoton WPCM450RA0BX
TPM	1 x TPM 1.2 20-pin Header
