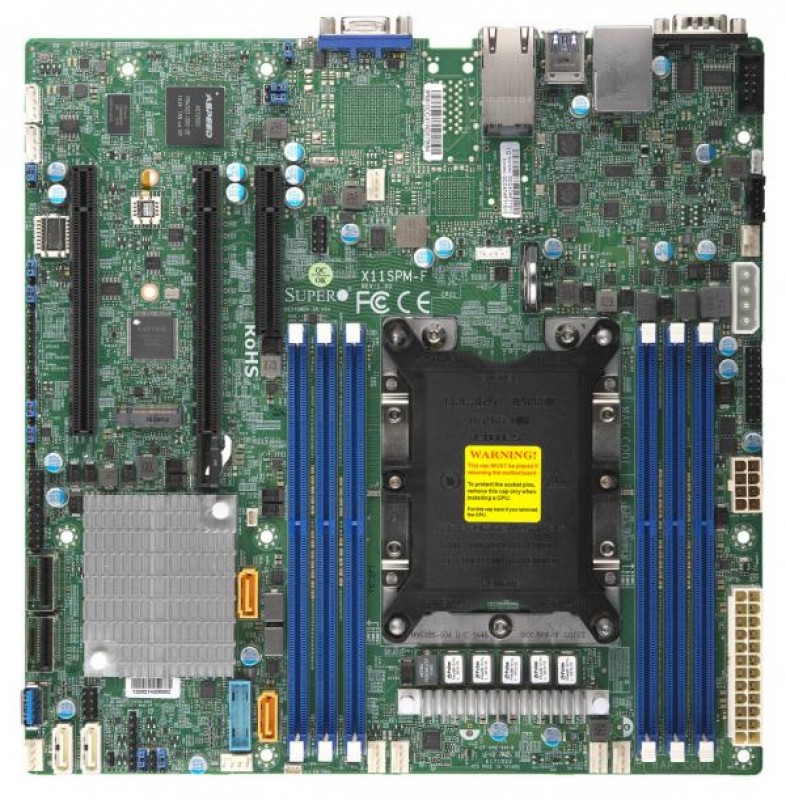

Supermicro MBD-X11SPM-F, Single SKT, Intel C621 Chipset, SATA, 2xGbE, IPMI, M.2 Bulk

Name: Supermicro MBD-X11SPM-F, Single SKT, Intel C621 Chipset, SATA, 2xGbE, IPMI, M.2 Bulk
Brand: Supermicro
SKU: MBD-X11SPM-F-B

Manufacturer

Supermicro

Part number:

MBD-X11SPM-F-B

EAN:

672042282586

Ask for availability date


Processor/Cache

CPU	Intel® Xeon® Processor Scalable Family. Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache	Up to 28 cores


System Memory

Memory Capacity	6x 288-pin DDR4 DIMM slots Up to 768GB ECC 3DS LRDIMM Up to 384GB ECC LRDIMM Up to 192GB ECC RDIMM
Memory Type	2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C621
SATA	Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 1GbE with Marvell® 88E1512
Graphics	Aspeed AST2500 BMC


Input / Output

SATA	12 SATA3 (6Gbps) port
LAN	2 1GbE LAN ports
USB	6 USB 2.0 ports (2 rear + 4 via header(s)), 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output	1 VGA port(s)
Serial Port / Header	2 COM Ports (1 rear, 1 header(s))
TPM	TPM Header


System BIOS

BIOS Type	AMI UEFI
BIOS Features	ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later


Management

Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
FAN	8x 4-pin fan headers (up to 8 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature	CPU thermal trip support PECI
LED	CPU / System Overheat LED UID/Remote UID Suspend static indicator LED
Other Features	ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL


Operating Environment

Operating Temperature Range	0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range

Category	Server
Form Factor	Micro-ATX
Dimensions	9.6" x 9.6"
CPU Socket	LGA 3647 (Socket P)
# of CPU sockets	1
Supported CPU's	Intel Xeon Scalable Processors
Chipset	C621
Memory Type	DDR4 ECC 3DS LRDIMM DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2666 MHz 2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's	6
Max Memory Size	768 GB
Integrated GPU	Aspeed AST2500
# of PCIe x16 3.0	2
# of PCIe x8 3.0	1
# of USB Ports	2 x USB 3.0 (rear) 2 x USB 3.0 (header) 1 x USB 3.0 Type A 2 x USB 2.0 (rear) 4 x USB 2.0 (header)
# of SATA Ports	12
Storage Controllers	8 x AHCI iSATA 6Gb/s 4 x sSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 1GbE Ports	2 x RJ45
Network Controllers	Marvell 88E1512 Dual Port Gigabit Ethernet
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2500
TPM	1 x TPM 2.0 20-pin Header
