PRODUCT INFO ID: 3223

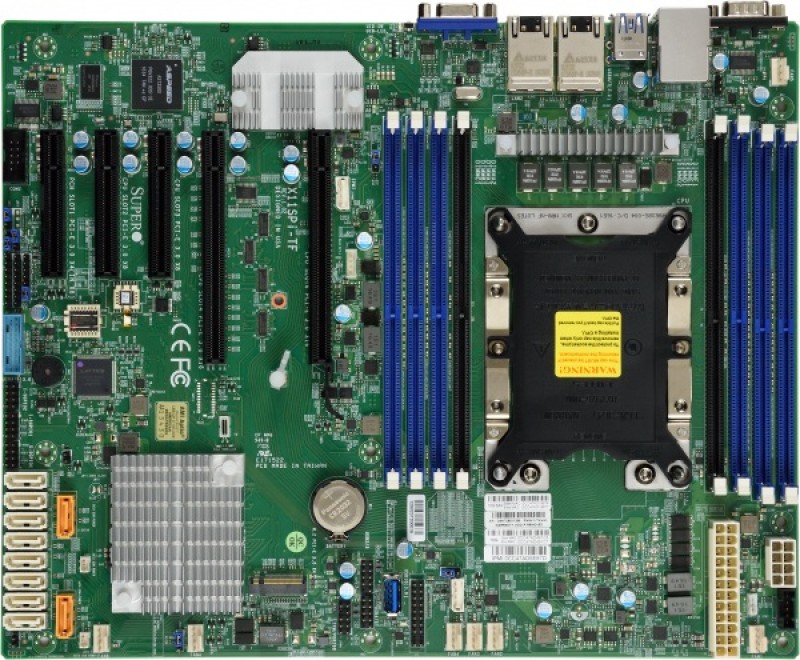

Supermicro MBD-X11SPi-TF, Single SKT, Intel C622 Chipset, SATA, 2x10GbE, IPMI, M.2

Name: Supermicro MBD-X11SPi-TF, Single SKT, Intel C622 Chipset, SATA, 2x10GbE, IPMI, M.2
Brand: Supermicro
SKU: MBD-X11SPI-TF-O
Price: 2441.91 PLN
Availability: OutOfStock

Manufacturer

Supermicro

Part number:

MBD-X11SPI-TF-O

EAN:

672042265350

Availability: 0 pcs. | Delivery: upon request

1985.29 PLN net2441.91 PLN gross

Quantity:

Details

Specification

Reviews (0)

Product SKUs

MBD-X11SPi-TF	X11SPi-TF


Physical Stats

Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)


Processor/Cache

CPU	Intel® Xeon® Processor Scalable Family. Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache	Up to 28 cores


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM
Memory Type	2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C622
SATA	Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 10GBase-T with Intel® X722 + X557
Graphics	Aspeed AST2500 BMC


Input / Output

SATA	10 SATA3 (6Gbps) port
LAN	2 RJ45 10GBase-T ports
USB	6 USB 2.0 ports (2 rear + 4 via header(s)), 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output	1 VGA port(s)
Serial Port / Header	2 COM Ports (1 rear, 1 header(s))
TPM	TPM Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
M.2	Interface: PCIe 3.0 x4 and SATA Form Factor: 2280, 22110


System BIOS

BIOS Type	AMI UEFI
BIOS Features	ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later


Management

Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN	7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature	CPU thermal trip support PECI
LED	CPU / System Overheat LED UID/Remote UID Suspend static indicator LED
Other Features	ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL


Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range

Category	Server
Form Factor	ATX
Dimensions	12" x 9.6"
CPU Socket	LGA 3647 (Socket P)
# of CPU sockets	1
Supported CPU's	Intel Xeon Scalable Processors
Chipset	C622
Memory Type	DDR4 ECC 3DS LRDIMM DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2666 MHz 2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's	8
Max Memory Size	1024 GB
Integrated GPU	Aspeed AST2500
# of PCIe x16 3.0	2
# of PCIe x4 3.0	1
# of PCIe x8 3.0	2
# of USB Ports	2 x USB 3.0 (rear) 2 x USB 3.0 (header) 1 x USB 3.0 Type A 2 x USB 2.0 (rear) 4 x USB 2.0 (header)
# of SATA Ports	10
Storage Controllers	10 x AHCI iSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 10GbE Ports	2 x RJ45
Network Controllers	Intel x722 Port 10 Gigabit Base-T Intel x557 Port 10 Gigabit Base-T
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2500
TPM	1 x TPM 2.0 20-pin Header
