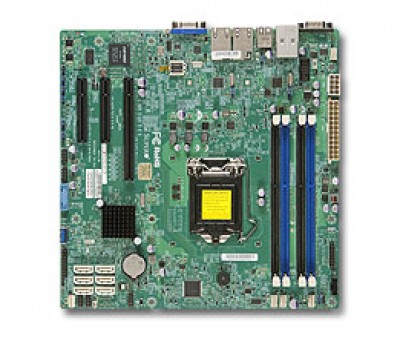

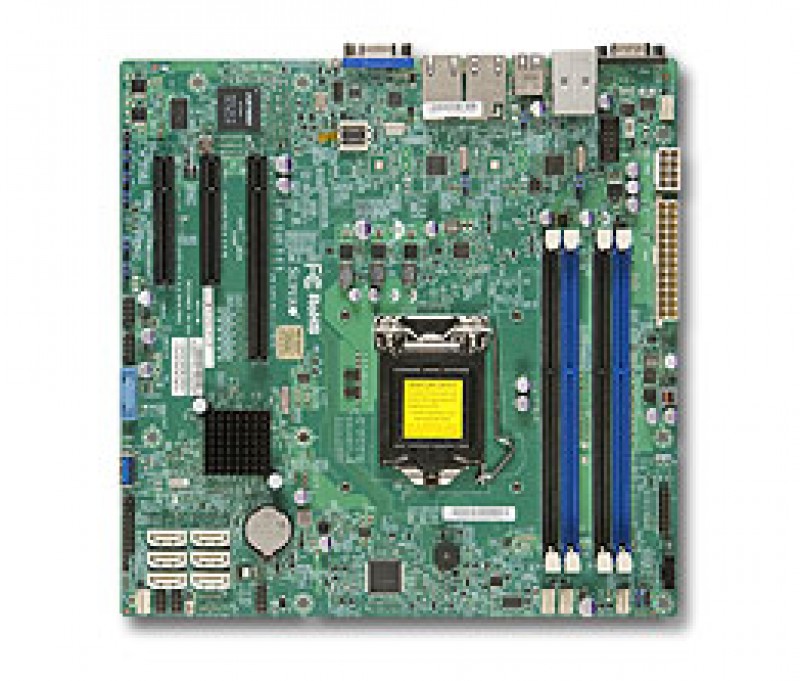

Supermicro MBD-X10SLH-F, Single SKT, Intel C226 Chipset, SATA, 2xGbE, IPMI Bulk

Name: Supermicro MBD-X10SLH-F, Single SKT, Intel C226 Chipset, SATA, 2xGbE, IPMI Bulk
Brand: Supermicro
SKU: MBD-X10SLH-F-B
Price: 1089.88 PLN
Availability: OutOfStock

Manufacturer

Supermicro

Part number:

MBD-X10SLH-F-B

EAN:

672042134823

Availability: 0 pcs. | Delivery: upon request

886.08 zł net1089.88 zł gross

Quantity:

Details

Specification

Reviews (0)

Product SKUs

MBD-X10SLH-F	X10SLH-F (Bulk Pack)


Physical Stats

Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4 cm)


Processor/Cache

CPU	Intel® Xeon® processor E3-1200 v3/v4 (supports VHD via E3-1285 or E3-1285L) and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)


System Memory

Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C226 Express PCH
SATA	SATA3 (6Gbps) w/ RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers	Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	BMC integrated Aspeed AST2400


Input / Output

Serial ATA	6x SATA3 (6Gbps) ports
LAN	2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear, 1 Type-A, 1 via header) 6x USB 2.0 ports (2 rear, 4 via header)
VGA	1x VGA D-Sub Connector
Serial Port / Header	2x COM ports (1 rear, 1 header)
DOM	SATA DOM (Disk on Module) power connector support
TPM	1x TPM Header


Chassis (Optimized for X10SLH-F )

1U Chassis:	SC813MTQ-R400CB SC813MTQ-350CB SC813MTQ-441CB SC113MTQ-R400CB SC113MTQ-330CB SC811TQ-441B SC512F-350B SC512F-441B
2U Chassis:	SC825MTQ-R700LPB SC823TQ-653LPB SC213LT-563LPB SC213LT-600LPB
3U Chassis:	SC833T-653B
Mid/Mini Tower Chassis:	SC731i-300B SC732i-865B SC732i-500B SC732D2-903B SC732D2-865B SC732D2-500B SC732D4-903B SC732D4-865B SC731D-300B SC732D4-500B SC733TQ-665B SC733TQ-500B
4U / Tower Chassis:	SC745TQ-920B SC745TQ-R920B SC743TQ-865B-SQ SC842i-500B SC842TQ-665B SC842TQ-865B
Important Chassis Notes	To support the new generation Intel^® Xeon^® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.


Expansion Slots

PCI-Express	1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support


Management

Software	IPMI (Intelligent Platform Management Interface) v2.0 with KVM support SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on


PC Health Monitoring

Voltage	Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of five 4-pin fan headers supporting up to 5 fans 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED
Other Features	Chassis intrusion detection Chassis intrusion header



Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C ~ 70°C (-40°F ~ 158°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range

Form Factor	uATX
Dimensions	9.6" x 9.6"
CPU Socket	LGA 1150 (Socket H3)
# of CPU sockets	1
Supported CPU's	Intel Xeon E3-1200v3 Intel Xeon E3-1200v4
Chipset	Intel C226 Lynx Point
Memory Type	DDR3 ECC UDIMM
Memory Speed	1600 MHz 1333 MHz
# of DIMM's	4
Max Memory Size	32 GB
Integrated GPU	Aspeed AST2400
# of PCIe x8 3.0	2
# of PCIe x4 2.0	1
# of USB Ports	2 x USB 3.0 (rear) 1 x USB 3.0 (header) 1 x USB 3.0 Type A 2 x USB 2.0 (rear) 4 x USB 2.0 (header)
# of SATA Ports	6
# of SATA DOM power	1
Storage Controllers	6 x AHCI iSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 1GbE Ports	2 x RJ45
Network Controllers	Intel i210 Dual Port Gigabit Ethernet
Integrated BMC	IPMI 2.0 KVM-over-LAN Virtual Media over LAN IPMI Dedicated RJ45 PHY
BMC chip	Aspeed AST2400
TPM	1 x TPM 1.2 20-pin Header
