PRODUCT INFO ID: 7264

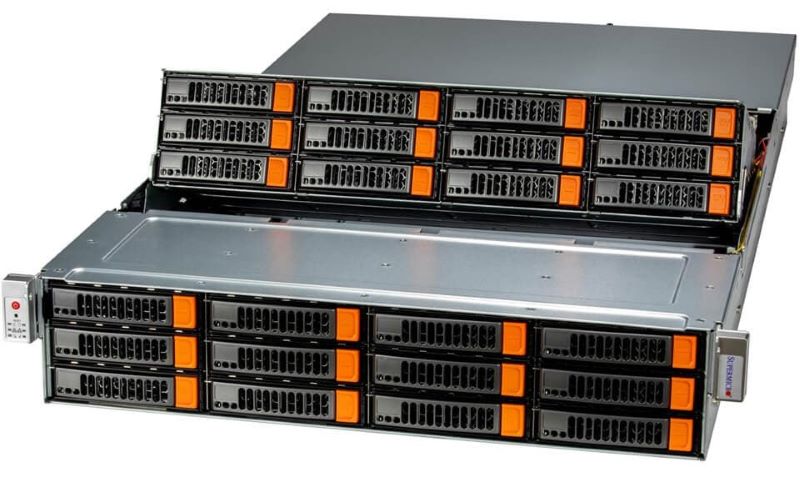

Supermicro SuperStorage SSG-620P-E1CR24L 2U DP 24xLFF AIOM IPMI RED PSU
Manufacturer
Supermicro
Part number:
SSG-620P-E1CR24L
EAN:
672042480838
PLEASE NOTE !!!
Due to the complexity of integration, this product is sold as a completely assembled system only (with CPUs, DIMMs and HDD/NVMes).
| Category | Enterprise Server HPC, Data Center |
|---|---|
| Order option | Complete System |
| Chassis Form Factor | Rack 2U |
| CPU Socket | LGA 4189 (Socket P+) |
| # of CPU sockets | 2 |
| Supported CPU's | Intel Xeon Scalable 3rd Gen |
| Max CPU TDP | 205 W |
| Chipset | Intel C621A |
| Memory Type | DDR4 ECC RDIMM DDR4 ECC LRDIMM |
| Memory Speed | 3200 MHz 2933 MHz 2666 MHz |
| # of DIMM's | 16 |
| Max Memory Size | 4 TB |
| # of 2.5 hot-swap bays | 2 |
| # of 2.5 NVMe bays | 2 |
| # of 3.5 hot-swap bays | 24 |
| Backplanes | NVMeG4/SAS3/SATA3 |
| I/O expansion modules | 1 x AIOM PCIe 4.0 x16 |
| # of USB Ports | 2 x USB 3.0 |
| Storage interface | Native SATA Optional SAS |
| Storage Controllers | Intel C621A |
| # of M.2 22110 | 3 |
| # of Serial Ports | 1 x Fast UART 16550 (rear) |
| Integrated BMC | IPMI Dedicated RJ45 |
| BMC chip | ASPEED AST2600 |
| TPM | 1 x TPM 2.0 10-pin Header |
| Power Supply | Redundant |
| PSU Wattage | 1600 W |
| PSU Certification | 80+ Titanium |
| Rack Rails | Included |
| Chassis Dimensions | 89 x 437 x 863 mm |
| Notes | 1 x PCIe 4.0 x8 LP slot 2 x PCIe 4.0 x16 LP slots 1 x PCIe 4.0 x16 AIOM slot |
