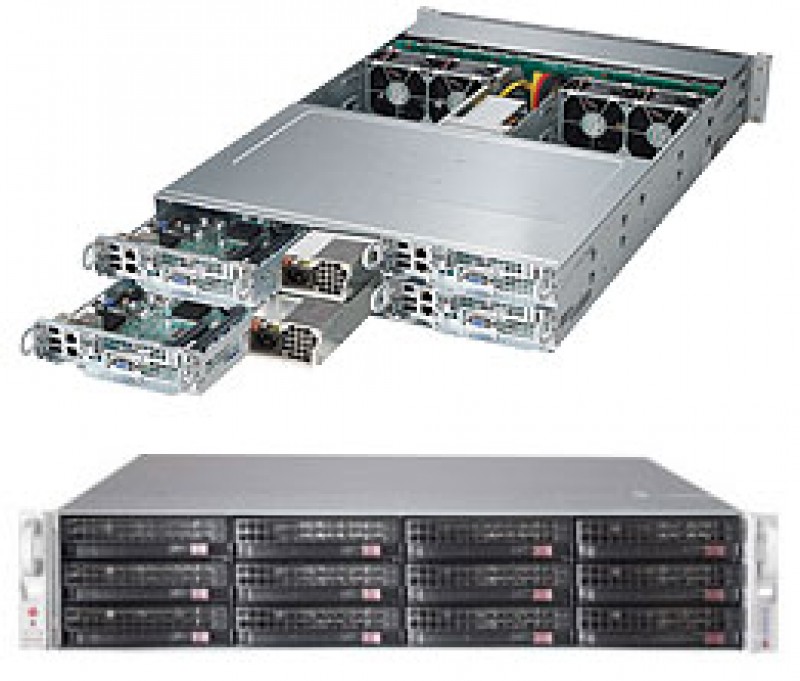

Supermicro SuperServer SYS-6028TP-HC1R 2U Twin^2 DP 4x3LFF LSI 3108 RED PSU

Name: Supermicro SuperServer SYS-6028TP-HC1R 2U Twin^2 DP 4x3LFF LSI 3108 RED PSU
Brand: Supermicro
SKU: SYS-6028TP-HC1R
Price: 5504.55 EUR
Availability: InStock

Manufacturer

Supermicro

Part number:

SYS-6028TP-HC1R

EAN:

672042160716

Availability: 1 pcs. | Delivery: 5-9 days
Product withdrawn from the manufacturer`s offer. Last pieces available.

4475.24 EUR net5504.55 EUR gross

Quantity:

Details

Specification

Reviews (0)

Product SKUs

SYS-6028TP-HC1R	SuperServer 6028TP-HC1R (Black)


Motherboard

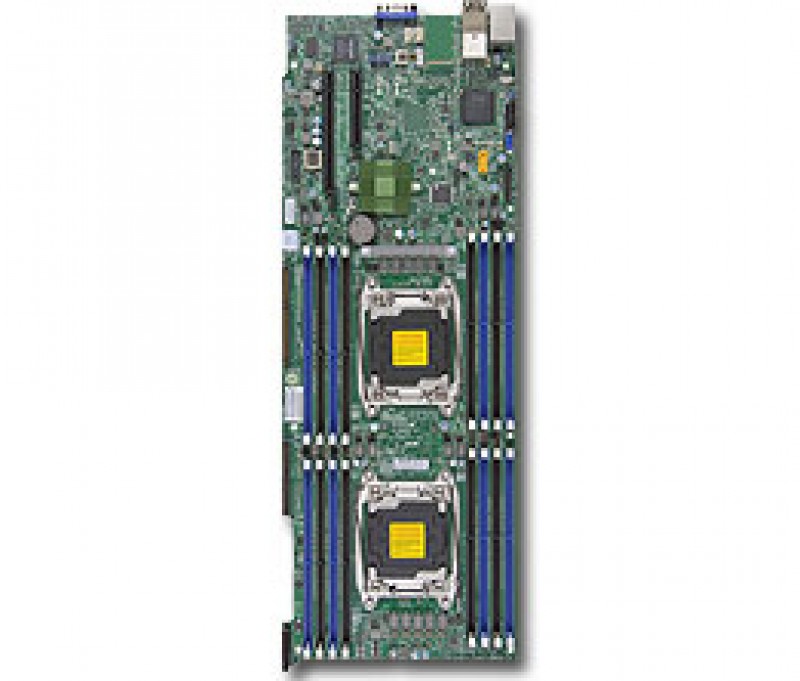

Super X10DRT-P


Processor/Cache (per Node)

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory (per Node)

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SAS	LSI 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5, 10 support Optional SuperCap
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350-AM2 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC


Input / Output (per Node)

SAS	3x SAS3 (12Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports total (2x rear)
VGA	1x VGA port
Serial Port / Header	1x Fast UART 16550 port / 1 Header (internal)
Others	1x SATADOM support on the motherboard


Chassis

Form Factor	2U Rackmount
Model	CSE-827HQ+-R2K04B


Dimensions and Weight

Width	17.25" (438mm)
Height	3.47" (88mm)
Depth	30.5" (774mm)
Weight	Gross Weight: 90 lbs (40.9kg) Net Weight: 72 lbs (32.7 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED


Expansion Slots (per Node)

PCI-Express	1x PCI-E 3.0 x16 Low-profile slot


Drive Bays (per Node)

Hot-swap	3x 3.5" Hot-swap SAS/SATA HDD trays


System Cooling

Fans	4x 8cm heavy duty PWM fans with optimal fan speed control


Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power	1000W/2000W
Dimension (W x H x L)	76 x 40.4 x 336 mm
Input	100-127 Vac / 12-9.5 A / 50-60 Hz 200-220 Vac / 10-9.5 A / 50-60 Hz 220-230 Vac / 10-9.8 A / 50-60 Hz 230-240 Vac / 10-9.8 A / 50-60 Hz 200-240 Vac / 11.8-10 A / 50-60 Hz (UL/cUL only)
+12V	Max: 83.3A & Min: 0A (100-127 Vac) Max: 150A & Min: 0A (200-220 Vac) Max: 165A & Min: 0A (220-230 Vac) Max: 166.7A & Min: 0A (230-240 Vac) Max: 166.7A & Min: 0A (200-240 Vac)(UL/cUL only)
+5Vsb	Max: 1A / Min: 0A
Output Type	27 Pairs Gold Finger Connector
Certification	UL/cUL/CB/BSMI/CE/CCC Titanium Level [ Test Report ]


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Chassis Form Factor	Rack 2U
# of systems (nodes)	4
CPU Socket	LGA 2011 (Socket R3)
# of CPU sockets (per node)	2
Supported CPU's	Intel Xeon E5-2600v4 Intel Xeon E5-2600v3
Max CPU TDP	145 W
Chipset	Intel C612
Memory Type	DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's (per node)	16
Max Memory Size (per node)	2048 GB
Integrated GPU	Aspeed AST2400
# of 3.5 hot-swap bays (per node)	3
Backplanes	SAS3/SATA3
# of PCIe x16 3.0 (per node)	1
# of USB Ports (per node)	2 x USB 3.0 (rear)
# of SATA Ports (per node)	10
# of SAS Ports (per node)	3
Storage Controllers	6 x AHCI iSATA 6Gb/s 4 x sSATA 6Gb/s LSI 3108 12Gb/s
Integrated RAID	0,1,5,10
Hardware RAID	0,1,5,10
# of Serial Ports (per node)	1 x Fast UART 16550 (header)
# of 1GbE Ports (per node)	2 x RJ45
Network Controllers	Intel i350 Dual Port Gigabit Ethernet
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2400
TPM	1 x TPM 1.2 20-pin Header
Power Supply	Redundant
PSU Wattage	2000 W
PSU Certification	80+ Titanium
Chassis Dimensions	438 x 88 x 774 mm
