PRODUCT INFO ID: 3193

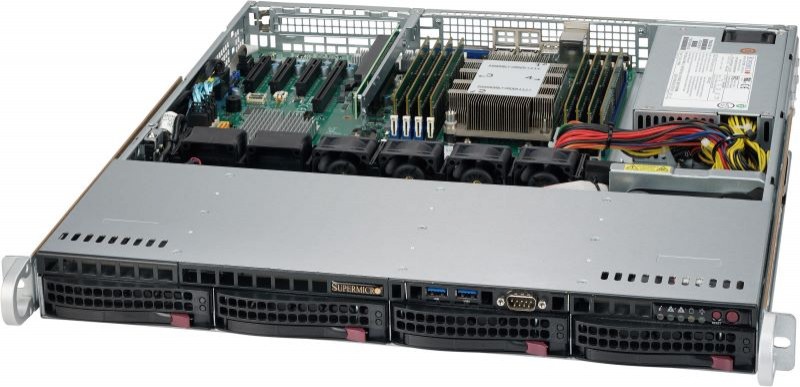

Supermicro SuperServer SYS-5019P-MT 1U UP 4xLFF 2x10GbE FIX PSU
Manufacturer
Supermicro
Part number:
SYS-5019P-MT
EAN:
672042263745
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Category | Web Hosting, VM Application and Data Serving |
|---|---|
| Order option | Barebone |
| Chassis Form Factor | Rack 1U |
| CPU Socket | LGA 3647 (Socket P) |
| # of CPU sockets | 1 |
| Supported CPU's | Intel Xeon Scalable 2nd Gen Intel Xeon Scalable 1st Gen |
| Max CPU TDP | 205 W |
| Chipset | C622 |
| Memory Type | DDR4 ECC RDIMM DDR4 ECC LRDIMM |
| Memory Speed | 2933 MHz 2666 MHz 2400 MHz 2133 MHz |
| # of DIMM's | 8 |
| Max Memory Size | 2 TB |
| Integrated GPU | ASPEED AST2500 |
| # of 3.5 fixed bays | 4 |
| # of PCIe x16 3.0 | 1 |
| # of USB Ports | 5 x USB 3.0 6 x USB 2.0 |
| Storage interface | Native SATA |
| # of SATA DOM power | 2 |
| Storage Controllers | Intel C622 |
| Integrated RAID | 0 1 5 10 |
| # of M.2 22110 | 1 |
| # of Serial Ports | 1 x Fast UART 16550 (header) 1 x Fast UART 16550 (rear) |
| # of 10GbE Ports | 2 x RJ45 |
| Network Controllers | Intel X722 + X557 |
| Integrated BMC | IPMI Dedicated RJ45 |
| BMC chip | ASPEED AST2500 |
| TPM | 1 x TPM 2.0-pin Header |
| Power Supply | Fixed |
| PSU Wattage | 350 W |
| PSU Certification | 80+ Platinum |
| Chassis Dimensions | 43 x 437 x 503 mm |
