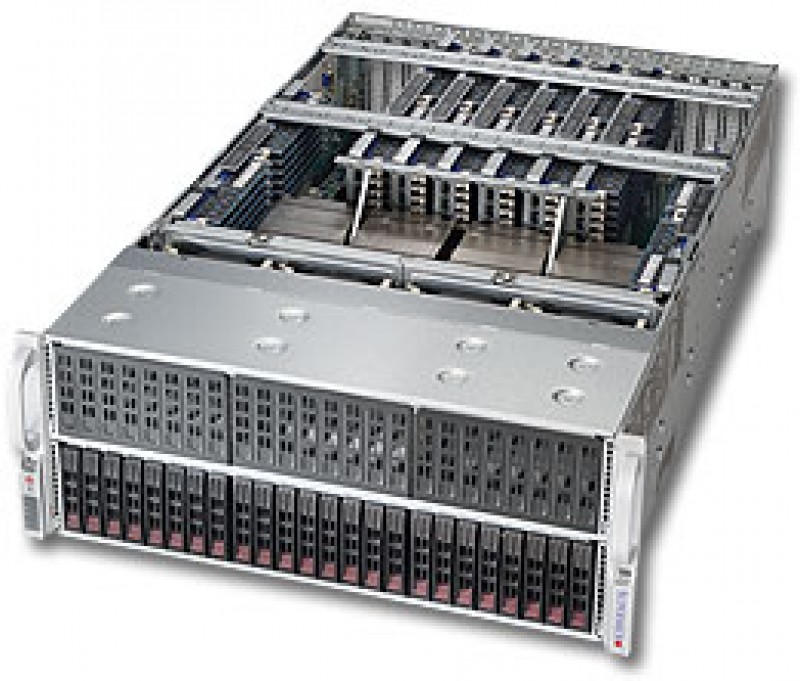

Supermicro SuperServer SYS-4048B-TRFT 4U QP 24xSFF 2x10GbE RED PSU

Poniżej prezentujemy szczegółowy opis techniczny oferowanego produktu:

Product SKUs SYS-4048B-TRFT SuperServer 4048B-TRFT (Black)   Motherboard Super X10QBi   Processor/Cache CPU Intel® Xeon® processor E7-8800 v3 / E7-4800 v3 / E7-8800 v2 / E7-4800 v2 family (up to 18 Cores and 165W TDP) Quad Socket R1 (LGA 2011) Cache Up to 45 MB System Bus QPI up to 9.6 GT/s Note: E7-8800/4800 v2 (using MB-X10QBI-MEM1 Rev 1.01 or above) E7-8800/4800 v3 (using MB-X10QBI-MEM1 Rev 2.0 or above)   System Memory Memory Capacity 96x 240-pin DDR3 DIMM slots Supports up to 6TB DDR3 ECC Registered memory (RDIMM) and LRDIMM in 96 DIMM slots Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB Memory Voltage 1.5 V, 1.35 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory)   On-Board Devices Chipset Intel® C602J chipset AHCI SATA SATA3 (6Gbps) with RAID 0, 1 SATA2 (3Gbps) with RAID 0, 1, 5, 10 Network Controllers (via AOM) Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) IPMI (via AOM) Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED 2400 Graphics ASPEED 2400   Input / Output AHCI SATA 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN 2x RJ45 10GBase-T ports on AOM 1x dedicated LAN port for IPMI on AOM USB 2x USB 2.0 ports Serial Port / Header 2x Fast UART 16550 ports: 1 rear and 1 header DOM 1 DOM (Disk on Module) power connector   System BIOS BIOS Type 16MB SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support

Chassis Form Factor 4U Rackmountable Rackmount Kit: Comes with the system Model CSE-418XA-R3240B   Dimensions and Weight Height 7.0" (178mm) Width 17.2" (437mm) Depth 31.3" (795mm) Weight Net Weight: 74.5 lbs (33.79 kg) Gross Weight: 115 lbs (52.16 kg) Available Colors Black   Drive Bays Hot-swap 24x 2.5" Hard drive bays (default)* 48x 2.5" Hard drive bays (optional) * BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2   Expansion Slots PCI-Express 11x PCI-E 3.0 slots w/ 48 memory slots (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8) 8x PCI-E 3.0 slots w/ 96 memory slots (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)   Backplane SAS/SATA HDD Backplane   System Cooling Fans 4x 92mm RPM Hot-Swappable Cooling Fans 3x 80mm RPM Hot-Swappable Rear Exhaust Fan 2x 80mm Rear Exhaust Fans (optional) Shrouds 1x Air Shroud (MCP-310-41804-0B)   Power Supply 1620W high-efficiency redundant power supply w/ PMBus AC Input 1000W Output @ 100-120V, 12-10A, 50-60Hz 1200W Output @ 120-140V, 12-10A, 50-60Hz 1620W Output @ 180-240V, 10.5-8A, 50-60Hz DC Output 1000W: +12V/84A; +5Vsb/4A 1200W: +12V/100A; +5Vsb/4A 1620W: +12V/150A; +5Vsb/4A Certification     Platinum Certified   [ Test Report ]   PC Health Monitoring CPU Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V FAN 4-pin fan headers with tachometer status monitoring Low noise fan speed control mode Temperature Monitoring for CPU and system environment Thermal Control for 9x fan connectors Other Features Chassis intrusion detection   Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C to 35°C (50°F to 95°F) Non-operating Temperature:    -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

UWAGA !!!

Ze względu na wysoki stopień integracji platforma dostępna jest tylko i wyłącznie jako gotowy system wraz z CPU, RAM i HDD oraz dodatkowymi kartami rozszerzeń. Prosimy o kontakt z nami w celu przedstawienia oferty na interesującą Państwa konfigurację.
