| Product SKUs |
 |

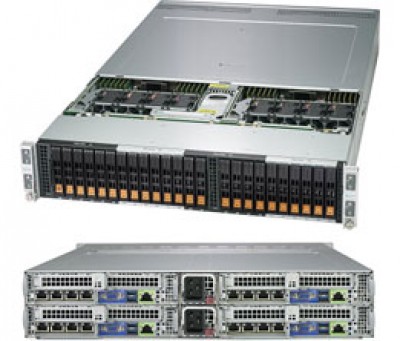

| SYS-2029BZ-HNR |
- SuperServer 2029BZ-HNR (Black)
|
| |
| Motherboard |
|
Super X11DPT-BH |
| |
| Processor/Cache |
|
| CPU |
- Dual Socket P (LGA 3647)
- Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
- Support CPU TDP 70-205W*
|
| Cores |
- Up to 28 Cores with Intel® HT Technology
|
| Note |
* 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization
|
| |
| System Memory |
|
| Memory Capacity |
- 24 DIMM slots
- Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 SDRAM
|
| |
| On-Board Devices |
|
| Chipset |
|
| Network |
- Must bundle with at least one SIOM network card
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
|
| |
| Input / Output (per Node) |
|
| LAN |
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
|
| Video |
|
| DOM |
- 1 SuperDOM (Disk on Module) port
|
| |
| System BIOS |
|
| BIOS Type |
|
| |
| Management |
|
| Software |
|
| Power Configurations |
- ACPI / APM Power Management
|
| |
| PC Health Monitoring |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
 |
| Chassis |
|
| Form Factor |
|
| Model |
|
| |
| Dimensions and Weight |
|
| Width |
|
| Height |
|
| Depth |
|
| Package |
- 24.65" (H) x 9.76" (W) x 45.28" (D)
|
| Weight |
- Gross Weight: 85 lbs (38.6kg)
- Net Weight: 54.5 lbs (24.7 kg)
|
| Available Colors |
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- UID button
|
| LEDs |
- Power status LED
- HDD activity LED
- Network activity LEDs
- Universal Information (UID) LED
|
| |
| Expansion Slots (per Node) |
|
| PCI-Express |
- 2 PCI-E 3.0 (x16) Low-profile slots
- 1 SIOM card support
(must bundle with network card)
|
| |
| Drive Bays / Storage (per Node) |
|
| Hot-swap |
- 6 Hot-swap 2.5" NVMe drive bays
|
| M.2 |
- 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
|
| |
| System Cooling |
|
| Fans |
- 16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node)
|
| |
| Power Supply |
| 2600W Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 208-240Vac/15-12.5A
- 220-240Vdc/13.5-12.5A (For CQC only)
|
| +12V |
|
| 12Vsb |
|
| Output Type |
|
| Certification |
  UL/cUL/CB/BSMI/CE/CQC
Titanium Level
[ Cert. in progress ] |
| |
| Operating Environment |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
