| Product SKUs |
 |

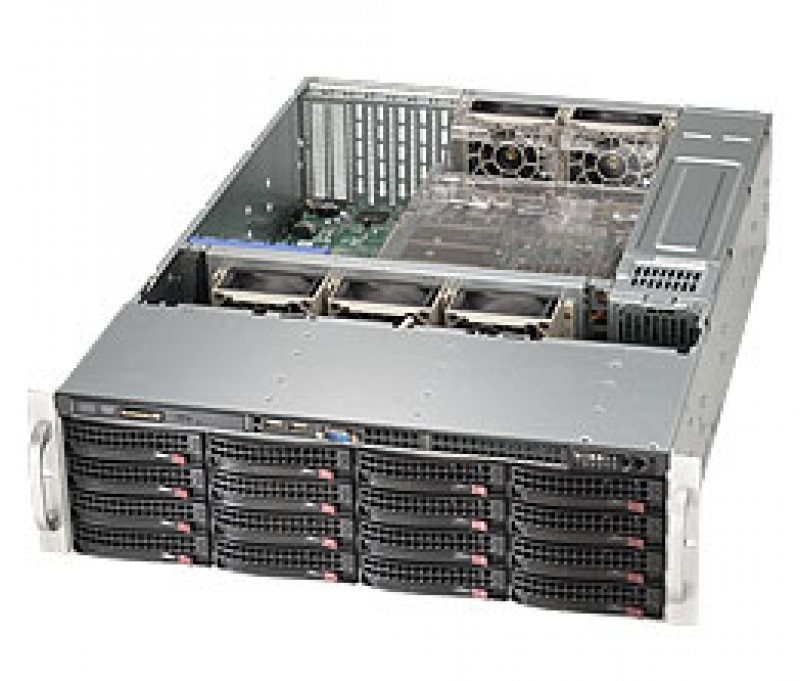

| CSE-836TQ-R710B |
- SuperChassis 836TQ-R710B (Black)
|
| |
| Form Factor |
|
| 3U chassis support for max. motherboard size - 13.68" x 13" |
| |
| Processor Support |
|
| Supports dual, single Intel® / AMD processors |
| |
| Dimensions |
|
| Height |
5.2" (132mm) |
| Width |
17.2" (437mm) |
| Depth |
25.5" (648mm) |
| Gross Weight |
55 lbs (25kg) |
| Available Colors |
Black |
| |
| Expansion Slots |
|
| • 7x full-height full-length expansion slots |
| |
| Drive Bays |
|
| Hot-swap |
16x 3.5" SAS / SATA Hot-swap drive trays
SAS or enterprise SATA HDD only recommended |
| |
| Backplane |
|
3U Direct Attached Backplane, features:
• 3Gb/6Gb support
• SES-2 Enclosure Management Support
• SAS/SATA support
• 16 SATA connectors |
| |
| Peripheral Drives |
|
| DVD-ROM |
Slim DVD-ROM Drive |
| Floppy |
Slim 1.44MB Floppy Drive (Optional) |
| |
| Front Panel |
|
| Buttons |
• Power On/Off button
• System Reset button |
| LEDs |
• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED |
| Ports |
2x USB Ports & DB9 COM Port |
|
Exception caught! Variable PRODID is undefined.
 |
| System Cooling |
|
| Fans |
• 3x 80mm Hot-swap PWM Fans
• 2x 80mm Rear-exhaust Fans |
| |
| System Monitoring |
|
| Chassis intrusion switch |
| |
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C ~ 60°C (-40°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 8% ~ 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
|
| 710W DC-DC high-efficiency power supply + PDB |
| DC Input Voltage |
- Voltage Range = -36V to -75V (24A - 11A)
- Nominal Voltage = -48V
|
| +5V standby |
|
| +12V |
|
| +5V |
|
| +3.3V |
|
| -12V |
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- USA - UL listed
- Canada - CUL listed
- Germany - TUV Certified
- EN 60950/IEC 60950-Compliant
- CB Report
- CCC Certification
|
|
