| Product SKUs |
 |
| CSE-836BHA-R1K28B |

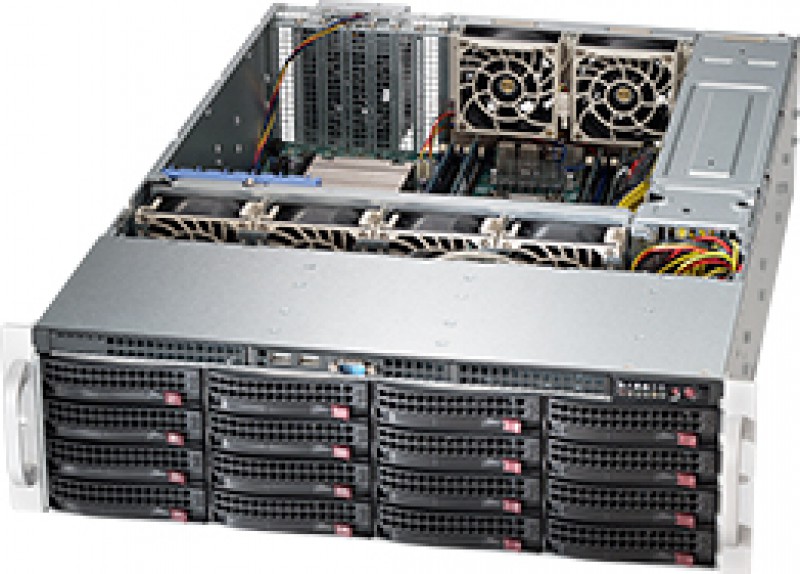

- SuperChassis 836BHA-R1K28B
|
| |
| Form Factor |
|
|
3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX
|
| |
| Processor Support |
|
|
Dual and Single Intel® and AMD processors
|
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
- 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
|
| Available Color |
|
| |
| Expansion Slots |
|
- 7 full-height & full-length expansion slot(s)
|
| |
| Drive Bays |
|
- 16 x 3.5" hot-swap SAS/SATA drive bay with SES2
|
| |
| Backplane |
|
- 16-port 3U SAS 6Gbps direct-attached backplane, support up to 16x 3.5-inch SAS/SATA HDD/SSD
|
| |
| Peripheral Drives |
|
- Optional 1 x Slim DVD-ROM Drive
- Optional 1 x slim 1.44MB Floppy Drive
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset Button
|
| LEDs |
- 2 Network Activity LEDs
- HDD activity LED
- Power LED
- Power Fail LED
- System Overheat LED
|
| Ports |
- 2x USB & DB9 COM port tray
|
|
| Systems Cooling |
|
| Fans |
- 4 x 80mm Hot-swap PWM Fans
- 2 x 80mm rear hot-swap exhaust PWM fan(s)
|
| |
| System Monitoring |
|
|
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus |
| Power Efficiency |
|
| Total Output Power and Input |
- 1000W with Input 100 - 140Vac
- 1280W with Input 200 - 240Vac
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 83A / Min: 0.5A (100Vac - 140Vac)
- Max: 106.7A / Min: 0.5A (200Vac - 240Vac)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT836-B4824
- O/P: 12V/135A
- +5V Max: 45A
- +3.3V Max: 24A
- -12V Max: 0.6A
|
| Certification |
 Platinum Certified
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class B
- TUV/CB
- UL/CUL
|
|
