| Product SKUs |
 |
| CSE-836BE16-R920B |

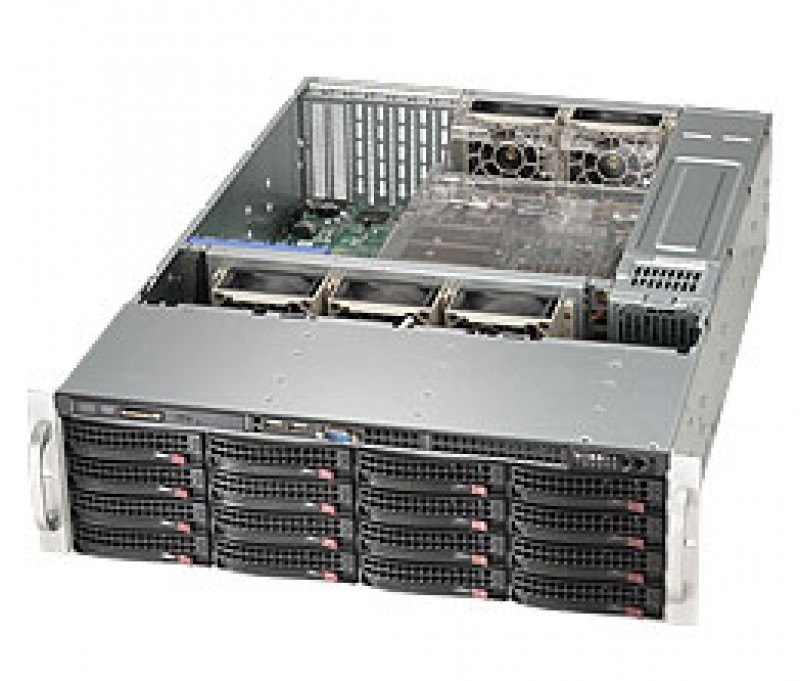

- SuperChassis 836BE16-R920B (Black)
|
| |
| Form Factor |
|
3U chassis support for max. motherboard size -
13.68" x 13", E-ATX and ATX |
| |
| Processor Support |
|
| Supports dual, single Intel® / AMD processors |
| |
| Dimensions |
|
| Height |
5.2" (132mm) |
| Width |
17.2" (437mm) |
| Depth |
25.5" (648mm) |
| Gross Weight |
52 lbs (23.6 kg) |
| Available Color |
Black |
| |
| Expansion Slots |
|
| • 7x full-height full-length expansion slots |
| |
| Drive Bays |
|
| Hot-swap |
16x 3.5" Hot-swap SAS Drive Bays with SES2 (dual-channel) and optional 2x 2.5" Hot-swap SAS Drive Bays on rear side of Chassis
SAS or enterprise SATA HDD only recommended |
| |
| Backplane |
|
SAS2 Expander Backplane, features:
• Scalability through cascading
• 6Gb SAS2/SATA3 HDD support
• Inband SES-2 Enclosure Management
• Single input/output SFF 8087 connectors |
| |
| Peripheral Drives |
|
| DVD-ROM |
Slim DVD-ROM Drive (Optional) |
| Floppy |
Slim 1.44MB Floppy Drive (Optional) |
| |
| Front Panel |
|
| Buttons |
• Power On/Off button
• System Reset button |
| LEDs |
• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED |
| Ports |
2x USB Ports & DB9 COM Port |
|
 |
| System Cooling |
|
| Fans |
• 3x 80mm Hot-swap 4-pin PWM Fans
• 2x 80mm Rear-exhaust 4-pin PWM Fans |
| |
| System Monitoring |
|
| Chassis intrusion switch |
| |
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C ~ 60°C (-40°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 8% ~ 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply with Power Distributor |
|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| AC Input |
- 100-240 V, 50-60 Hz, 11-4.5 Amp
|
| DC Output |
- 4 Amp @ +5V standby
- 75 Amp @ +12V
|
| Certification |
  Platinum Certified
[ Test Report ] |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- USA - UL listed
- Canada - CUL listed
- Germany - TUV Certified
- EN 60950/IEC 60950-Compliant
- CB Report
- CCC Certification
|
|
