| Product SKUs |
 |
| CSE-813LT-R500CB |

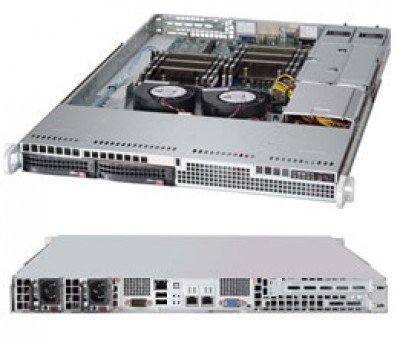

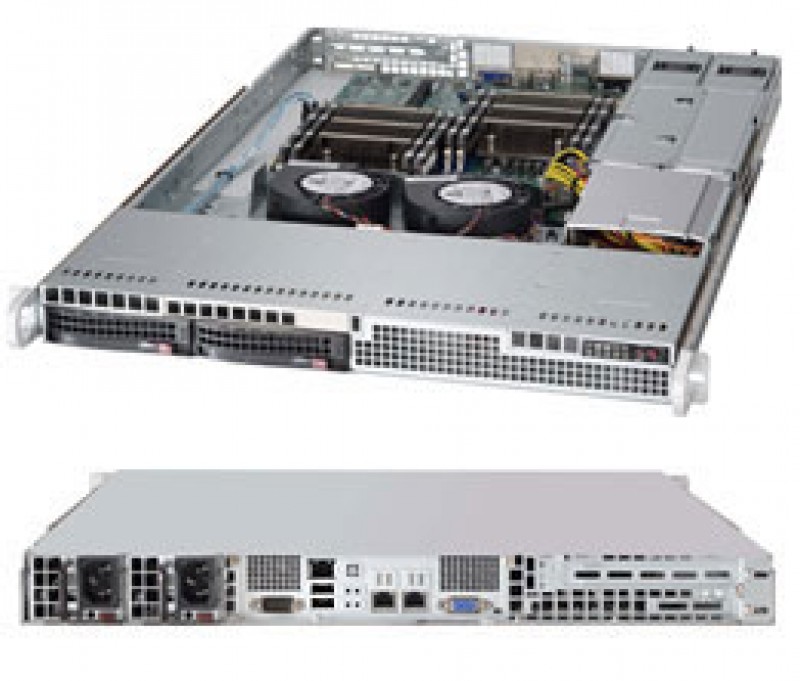

- SuperChassis 813LT-R500CB
|
| |
 |
| Form Factor |
|
| 1U chassis support for max. motherboard size - 12" x 13" E-ATX |
| |
| Processor Support |
|
| Supports dual, single Intel® / AMD processors |
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Package |
23.5" x 8.5" x 33.7" |
| Available Colors |
|
| |
| Expansion Slots |
|
| • 1x Full-height, Full-length PCI expansion slot |
| |
| Drive Bays |
|
| Hot-swap |
- 2x 3.5" SAS/SATA hot-swap drive trays
- SAS or enterprise SATA HDD only recommended
|
| |
| SATA Backplane |
|
| 1x 1U SAS / SATA backplane |
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Information LED
|
|
|
| System Cooling |
|
| Fans |
|
| |
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C ~ 60°C (-40°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 8% ~ 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 500W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC |
| AC Input |
- 100-240V, 50-60Hz, 6.1-2.6A
|
| DC Output |
- +5V standby: 3A
- +12V: 42A
|
| With Power Distributor |
- +5V: 25A
- +3.3V: 12A
- -12V: 0.6A
|
| Certification |
  Platinum Certified
[ Test Report ] |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- USA - UL listed, FCC
- Canada - CUL listed
- China - CCC Mark
- Europe/CE Mark
- EN 60950/IEC 60950-Compliant
- Germany - TUV Certified
- Taiwan- BSMI mark
|
|
