| Product SKUs |
 |
| CSE-514-R400W |

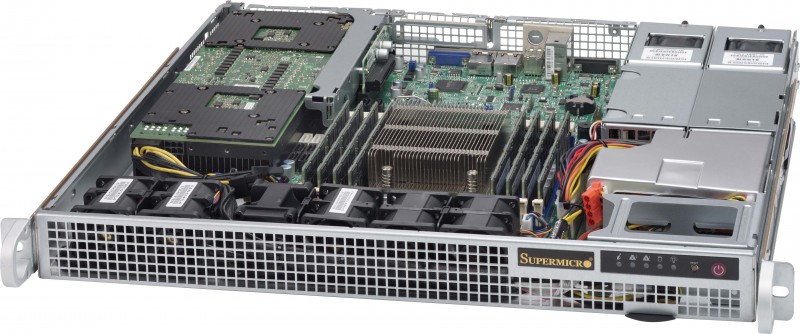

- SuperChassis 514-R400W (No Paint)
|
| |
| Form Factor |
|
| 1U chassis for motherboard support size of Proprietary 12.3" x 13", Proprietary 8.15" x 13.05" |
| |
| Processor Support |
|
| Supports dual, single Intel® / AMD processors |
| |
| Dimensions |
|
| Height |
1.7" (43mm) |
| Width |
17.2" (437mm) |
| Depth |
16.9" (429mm) |
| Gross Weight |
18 lb (8.16 kg) |
| Packaging |
27'' (W) x 8''(H) 24'' (L) |
| Available Color |
No Paint |
| |
| Expansion Slots |
|
2 full height expansion slot(s)
1 low-profile expansion slot(s) |
| |
| Drive Bays |
|
| Internal Bay |
• Up to 2x 2.5" fixed with bracket
• SAS or enterprise SATA HDD only recommended |
| |
| Front Panel |
|
| Buttons |
• Power On/Off button
• System Reset Button
|
| LEDs |
• 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED
|
|
 |
| System Cooling |
|
| Fans |
4x 40x56mm PWM fan
2x fans for AOC cooling |
| |
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C ~ 60°C (-40°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 8% ~ 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
|
| 400W SuperCompact Short-depth AC-DC high-efficiency power supply with PMBus and I2C |
| AC Voltage |
- 400W: 100-240 V, 50-60 Hz, 6-3 Amp
|
DC Output
+5V standby |
|
DC Output
+5V standby |
|
| With Power Distributor |
- +5V: 25 Amp
- +3.3V: 25 Amp
- -12V: 0.6 Amp
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- USA - UL listed, FCC
- Canada - CUL listed
- Germany - TUV Certified
- Europe/CE Mark
- EN 60950/IEC 60950-Compliant
|
|
