| Product SKUs |
 |
| CSE-213AC-R1K23LPB |

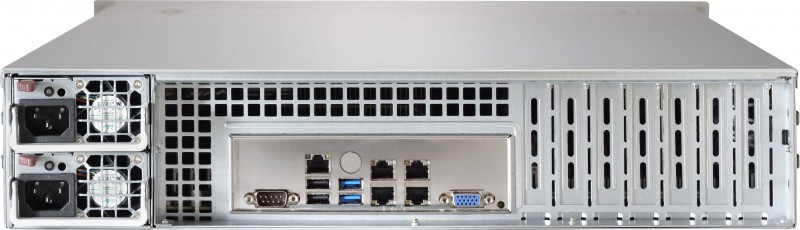

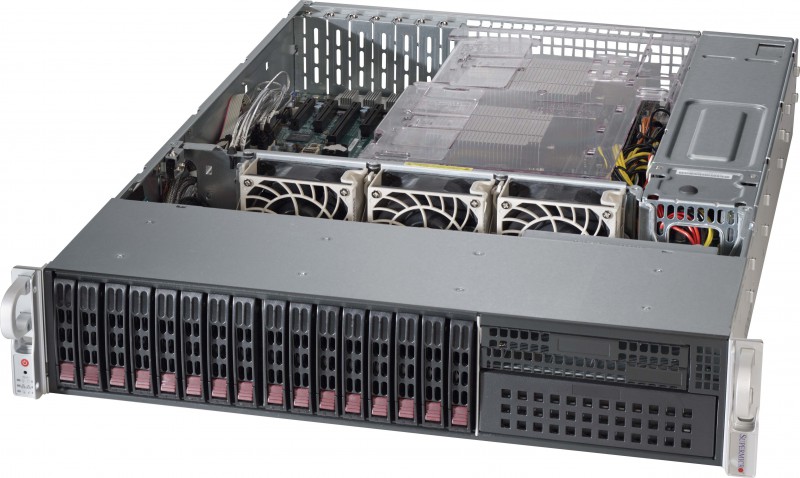

- SuperChassis 213AC-R1K23LPB
|
| |
| Form Factor |
|
|
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
|
| |
| Processor Support |
|
|
Dual and Single Intel® and AMD processors
|
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
- 29" (737 mm) x 11" (279 mm) x 38.7" (983 mm)
|
| Available Color |
|
| |
| Expansion Slots |
|
- 7 low-profile expansion slot(s)
|
| |
| Drive Bays |
|
- 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
- 1 x 5.25" drive bay
|
| |
| Backplane |
|
- 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
|
| |
| Peripheral Drives |
|
- Optional 1 x slim DVD-ROM drive bay
- Optional 2 x USB 2.0 ports
- Optional 1 x COM port tray
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset Button
|
| LEDs |
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- Power Fail LED
- System Information LED
|
|
| Systems Cooling |
|
| Fans |
- 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm |
| Power Efficiency |
|
| Total Output Power and Input |
- 1000W with Input 100 - 127Vac
- 1200W with Input 200 - 240Vac
- 1200W with Input 200 - 240Vdc
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 83A (100Vac - 127Vac)
- Max: 100A (200Vac - 240Vac)
- Max: 100A (200 - 240)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT216-8824
- O/P: 12V/100
- +5V Max: 30
- +3.3V Max: 24
- -12V Max: 0.6
|
| Certification |
 Titanium Certified
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
|
|
