| Product SKUs |
 |

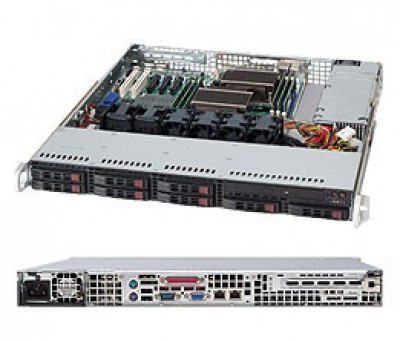

| CSE-113TQ-700CB |
|
| |
| Form Factor |
|
|
1U Chassis for motherboard support size: (12" x 13")
|
| |
| Processor Support |
|
|
Dual, single Intel® / AMD processors
|
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
- 25" (635 mm) x 9" (229 mm) x 33" (838 mm)
|
| Available Color |
|
| |
| Expansion Slots |
|
- 1 full-height & full-length expansion slot(s)
|
| |
| Drive Bays |
|
- 8 x 2.5" hot-swap SAS/SATA drive bay
- SAS or enterprise SATA HDD only recommended
|
| |
| Backplane |
|
- 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
|
| |
| Peripheral Drives |
|
|
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset Button
- Unit Identification (UID) button
|
| LEDs |
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- Unit Identification (UID) LED
|
|
| Systems Cooling |
|
| Fans |
- 4 x 40x56mm counter-rotation PWM fan(s)
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 700W hot swap redundant power supply. |
| Power Efficiency |
|
| Total Output Power and Input |
- 700W with Input 100 - 240Vac
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 58A / Min: 0.5A (100Vac - 240Vac)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT815-8824
- O/P: 120/66A
- +5V Max: 24A
- +3.3V Max: 21A
- -12V Max: 0.6A
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class A
- TUV/CB
- UL/CUL
|
|
