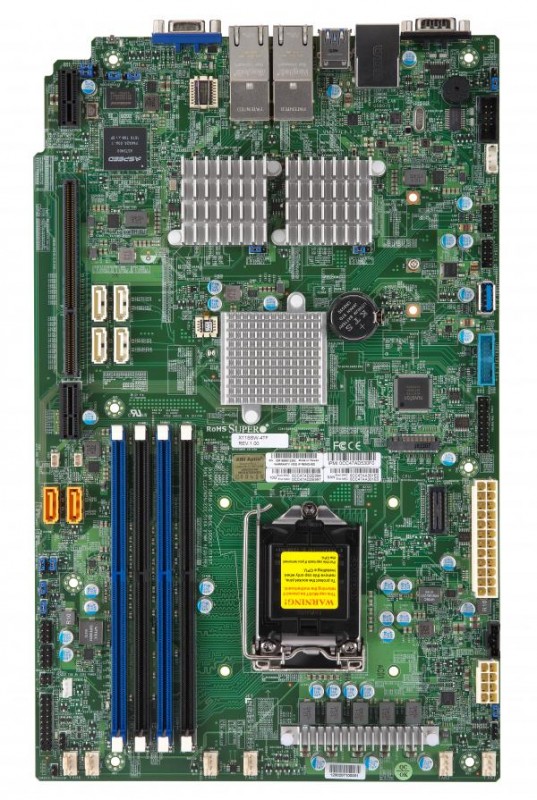

Supermicro MBD-X11SSW-4TF, Single SKT, Intel C236 Chipset, SATA, 4x10GbE, IPMI, M.2

Name: Supermicro MBD-X11SSW-4TF, Single SKT, Intel C236 Chipset, SATA, 4x10GbE, IPMI, M.2
Brand: Supermicro
SKU: MBD-X11SSW-4TF-O

Manufacturer

Supermicro

Part number:

MBD-X11SSW-4TF-O

EAN:

672042264919

$592.25 net$728.47 gross

Quantity:


Processor/Cache

CPU	Intel® 6th Generation Core™ i3 series Intel® Celeron® Intel® Pentium® Intel® Xeon® processor E3-1200 v5 series Socket H4 (LGA 1151) supported; CPU TDP support 80W


System Memory

Memory Capacity	64GB Unbuffered ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C236
SATA	Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Quad LAN with Intel® X540 10GBase-T Ethernet Controller
Graphics	Aspeed AST2400 BMC


Input / Output

USB	6 USB 2.0 ports (2 rear, 4 via header) 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video Output	1 VGA 1 Aspeed AST2400 BMC
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	Header

Expansion Slots

PCI-E	1 PCI-E 3.0 x16 Left Riser Slot M.2 Interface: PCIe 3.0 x4 M.2 Form Factor: 2260, 2280, 22110


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	ACPI 1.0 / 2.0 / 3.0 / 4.0 APM 1.2 DMI 2.3 Hardware BIOS Virus protection PCI 2.3 Plug and Play (PnP) RTC (Real Time Clock) Wakeup SMBIOS 2.7.1 UEFI 2.3.1 USB Keyboard support


Management

Software	Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN	6x 4-pin fan headers (up to 6 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
LED	UID/Remote UID CPU / System Overheat LED
Other Features	Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, VHD, WOL

Form Factor	Proprietary
Dimensions	8" x 13"
CPU Socket	LGA 1151 (Socket H4)
# of CPU sockets	1
Supported CPU's	Intel Xeon E3-1200v5 Intel 6th Gen.Core i3
Chipset	Intel C236 Skylake
Memory Type	DDR4 ECC UDIMM
Memory Speed	2133 MHz 1866 MHz 1600 MHz
# of DIMM's	4
Max Memory Size	64 GB
Integrated GPU	Aspeed AST2400
# of PCIe x16 3.0	1
# of USB Ports	2 x USB 3.0 (rear) 2 x USB 3.0 (header) 1 x USB 3.0 Type A 2 x USB 2.0 (rear) 4 x USB 2.0 (header)
# of SATA Ports	6
Storage Controllers	6 x AHCI iSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 10GbE Ports	4 x Base-T
Network Controllers	Intel x540 Quad Port 10 Gigabit Base-T
TPM	1 x TPM 1.2 20-pin Header
