PRODUCT INFO ID: 2782

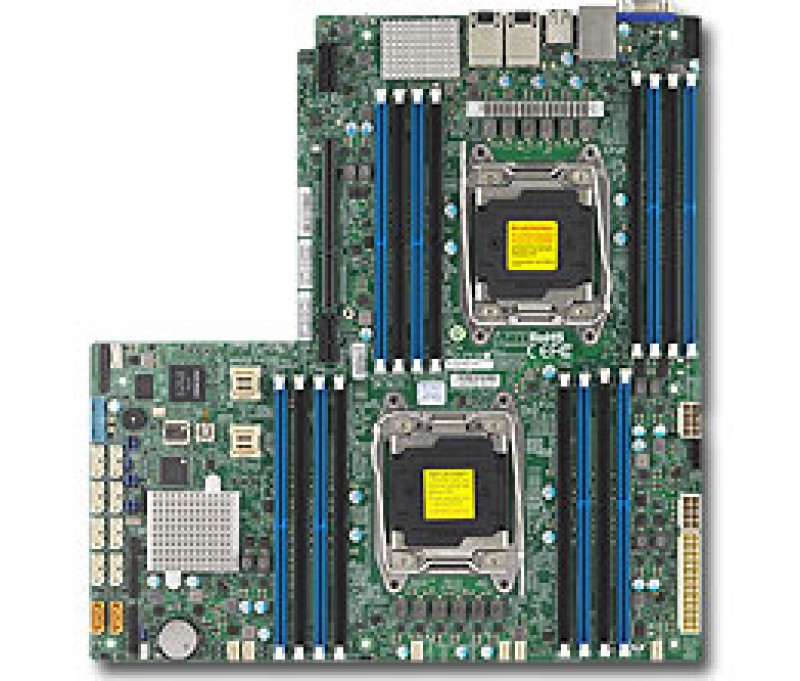

Supermicro MBD-X10DRW-NT, Dual SKT, Intel C612 Chipset, SATA, NVMe, 2x10GbE, IPMI

Name: Supermicro MBD-X10DRW-NT, Dual SKT, Intel C612 Chipset, SATA, NVMe, 2x10GbE, IPMI
Brand: Supermicro
SKU: MBD-X10DRW-NT-O
Price: 2691.26 PLN
Availability: OutOfStock

Manufacturer

Supermicro

Part number:

MBD-X10DRW-NT-O

EAN:

672042179930

Availability: 0 pcs. | Delivery: upon request

2188.02 zł net2691.26 zł gross

Quantity:

Details

Specification

Reviews (0)

Product SKUs

MBD-X10DRW-NT -B	X10DRW-NT (Bulk Pack)
MBD-X10DRW-NT -O	X10DRW-NT (Retail Pack)


Physical Stats

Form Factor	Proprietary WIO
Dimensions	12.3" x 13" (31.2cm x 33.0cm)


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP**) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC


Input / Output

SATA	10x SATA3 (6Gbps) ports
NVMExpress	2x PCI-E 3.0 NVMExpress x4 Internal Ports
LAN	2x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (via header) 4x USB 2.0 ports (rear)
Video	1x VGA port
Serial Port / Header	1x Header
DOM	2x SuperDOM (Disk on Module) ports
TPM	1x TPM Header


Chassis (Optimized for X10DRW-NT )

1U Chassis:	SC116TQ-R700WB SC113TQ-R700WB SC815TQ-600WB SC113TQ-600WB SC815TQ-R706WB SC514-R400W
2U Chassis:	SC825TQ-R740WB SC826BA-R920WB SC213A-R740WB SC826BAC4-R920WB SC216BA-R920WB
Important Chassis Notes	To support the new generation Intel^® Xeon^® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.


SuperServer(s) with X10DRW-NT

Model(s)	SYS-1028R-WTNRT


Expansion Slots

PCI-Express	Riser card support: Left side - 1 PCI-E 3.0 x32


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management

Software	SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI IPMI 1.5 / 2.0
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator
FAN	6x 4-pin fan headers (up to 6 fans) 6x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 6x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS



Operating Environment

Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range

Category	Server
Form Factor	WIO Proprietary
Dimensions	12.3" x 13"
CPU Socket	LGA 2011 (Socket R3)
# of CPU sockets	2
Supported CPU's	Intel Xeon E5-2600v4 Intel Xeon E5-2600v3
Chipset	Intel C612 Wellsburg
Memory Type	DDR4 ECC 3DS LRDIMM DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's	16
Max Memory Size	2048 GB
Integrated GPU	Aspeed AST2400
# of USB Ports	2 x USB 3.0 (header) 4 x USB 2.0 (rear)
# of SATA Ports	10
# of NVMe ports	2
Storage Controllers	6 x AHCI iSATA 6Gb/s 4 x sSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (header)
# of 10GbE Ports	2 x RJ45
Network Controllers	Intel x540 Dual Port 10 Gigabit Base-T
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2400
TPM	1 x TPM 1.2 20-pin Header
Notes	1 PCI-E 3.0 x32 Left Riser Slot
