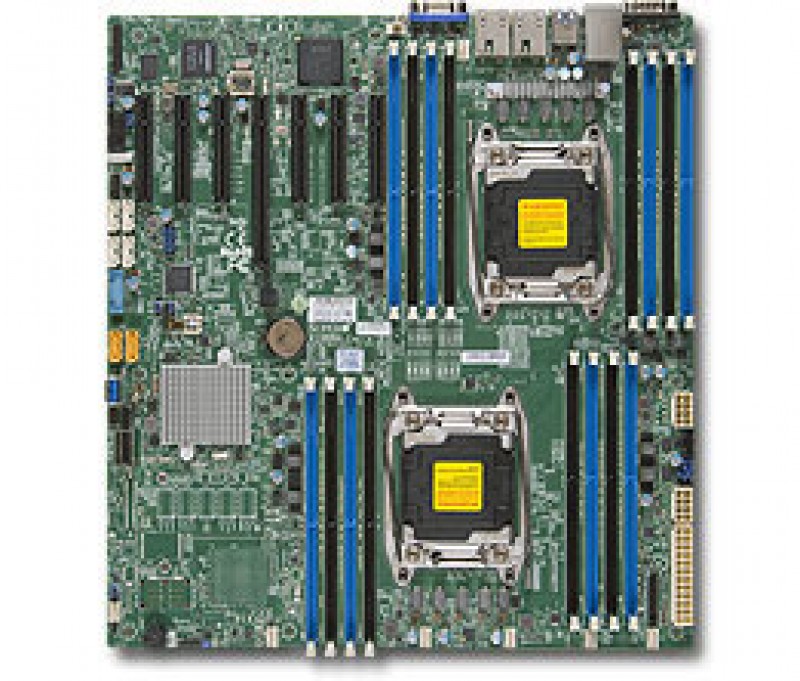

Supermicro MBD-X10DRH-iT, Dual SKT, Intel C612 Chipset, SATA, 2x10GbE, IPMI Bulk

Name: Supermicro MBD-X10DRH-iT, Dual SKT, Intel C612 Chipset, SATA, 2x10GbE, IPMI Bulk
Brand: Supermicro
SKU: MBD-X10DRH-iT-B

Manufacturer

Supermicro

Part number:

MBD-X10DRH-iT-B

EAN:

672042171200

Ask for availability date


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP**) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC


Input / Output

SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 10GBase-T ports 1x RJ45 Dedicated IPMI LAN port
USB	5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4x USB 2.0 ports (2 rear + 2 via header)
Video	1x VGA Connector
Serial Port / Header	2x Fast UART 16550 serial 2x COM Ports (1 rear, 1 header)
DOM	2x SuperDOM (Disk on Module) ports
TPM	1x TPM Header


Chassis (Optimized for X10DRH-iT )

2U Chassis:	SC826BE1C-R920LPB SC826BE2C-R920LPB SC826BAC4-R920LPB SC216BE1C-R920LPB SC216BE2C-R920LPB
3U Chassis:	SC836BE1C-R1K03B SC836BE2C-R1K03B SC835TQ-R920B
Mid/Mini Tower Chassis:	SC732i-865B SC732D4F-903B
4U / Tower Chassis:	SC743TQ-1200B SC847BE1C-R1K28LPB SC847BE2C-R1K28LPB SC846BE1C-R1K28B
Important Chassis Notes	To support the new generation Intel^® Xeon^® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.


SuperServer(s) with X10DRH-iT

Model(s)	SSG-6028R-E1CR12L SSG-6028R-E1CR12H SSG-6048R-E1CR36L SSG-6048R-E1CR36H SSG-6048R-E1CR24H SSG-6048R-E1CR24L SSG-6038R-E1CR16L SSG-6038R-E1CR16H SSG-2028R-E1CR24L SSG-2028R-E1CR24H SSG-2028R-ACR24L SSG-2028R-ACR24H SSG-6048R-E1CR72L


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management

Software	Intel® Node Manager 3.0 IPMI 2.0 SPM SUM SuperDoctor® 5 NMI Watch Dog
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS



Operating Environment

Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range

Category	Server
Form Factor	E-ATX
Dimensions	12" x 13"
CPU Socket	LGA 2011 (Socket R3)
# of CPU sockets	2
Supported CPU's	Intel Xeon E5-2600v3 Intel Xeon E5-2600v4
Chipset	Intel C612 Wellsburg
Memory Type	DDR4 ECC 3DS LRDIMM DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's	16
Max Memory Size	2048 GB
Integrated GPU	Aspeed AST2400
# of PCIe x16 3.0	1
# of PCIe x8 3.0	6
# of USB Ports	2 x USB 3.0 (rear) 2 x USB 3.0 (header) 1 x USB 3.0 Type A 2 x USB 2.0 (rear) 2 x USB 2.0 (header)
# of SATA Ports	10
# of SATA DOM power	2
Storage Controllers	6 x AHCI iSATA 6Gb/s 4 x sSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 10GbE Ports	2 x RJ45
Network Controllers	Intel x540 Dual Port 10 Gigabit Base-T
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2400
TPM	1 x TPM 1.2 20-pin Header
