PRODUCT INFO ID: 7646

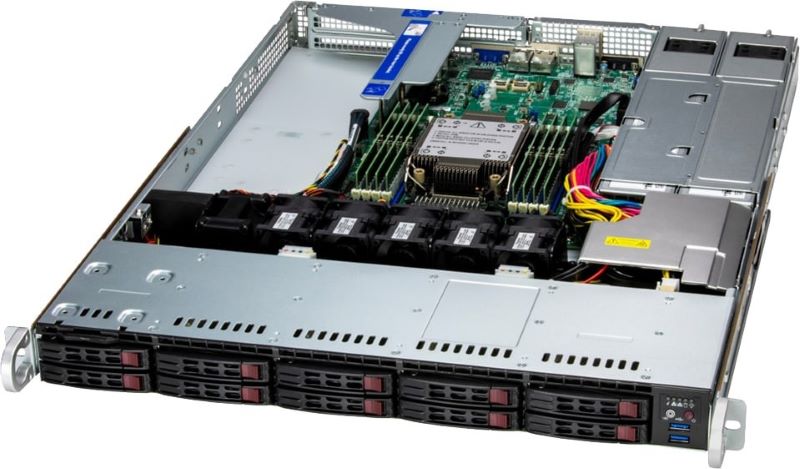

Supermicto WIO SuperServer SYS-112B-WR 1U UP 8xSFF 2x1GbE IPMI RED PSU
Manufacturer
Supermicro
Part number:
SYS-112B-WR
PLEASE NOTE !!!
Due to the complexity of integration, this product is sold as a completely assembled system only (with CPUs, DIMMs and HDD/NVMes).
| Category | Virtualization Cloud Computing |
|---|---|
| Order option | Complete System |
| Chassis Form Factor | Rack 1U |
| CPU Socket | LGA 4710 (Socket E2) |
| # of CPU sockets | 1 |
| Supported CPU's | Intel Xeon 6700 Intel Xeon 6500 |
| Max CPU TDP | 300 W |
| Chipset | System on Chip |
| Memory Type | DDR5 ECC RDIMM |
| Memory Speed | 6400 MT/s |
| # of DIMM's | 8 |
| Max Memory Size | 1 TB |
| # of 2.5 hot-swap bays | 8 |
| # of PCIe x16 5.0 | 2 |
| # of PCIe x8 5.0 | 1 |
| # of USB Ports | 4 x USB 3.2 Gen1 |
| Storage interface | Native SATA |
| Storage Controllers | ASMediaASM1164 |
| Integrated RAID | 0 1 5 10 |
| # of M.2 22110 | 2 |
| # of Serial Ports | 1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header) |
| # of 1GbE Ports | 2 x RJ45 |
| Network Controllers | Intel I210 |
| Integrated BMC | IPMI Dedicated RJ45 |
| BMC chip | ASPEED AST2600 |
| Power Supply | Redundant |
| PSU Wattage | 860 W |
| PSU Certification | 80+ Titanium |
| Rack Rails | Included |
| Chassis Dimensions | 43 x 437 x 597 mm |
