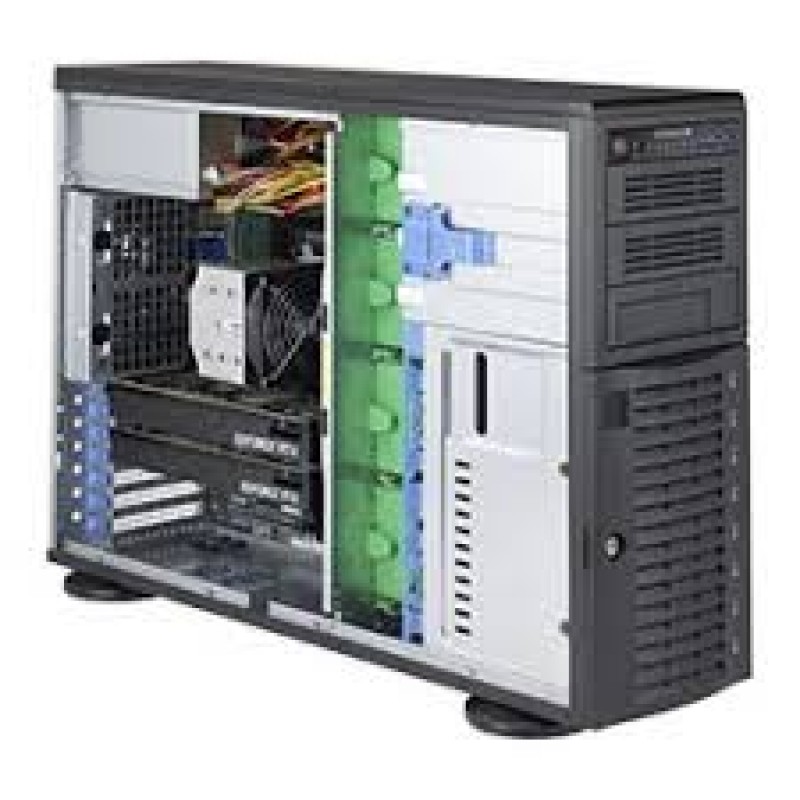

Supermicro SuperWorkstation SYS-5049A-T Mid-Tower (ANSYS)

Product SKUs

·         SYS-5049A-T (Black)

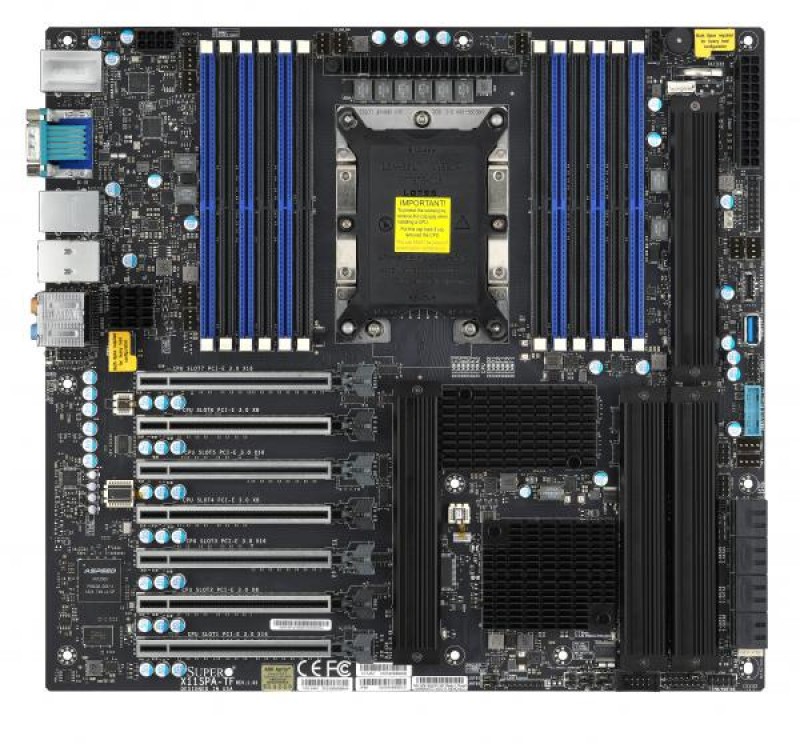

Motherboard

Super X11SPA-TF

Processor/Cache

·         Single Socket P (LGA 3647)

·         2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡

·         Support CPU TDP up to 205W

·         Up to 28 Cores

^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

·         12 DIMM slots

·         Up to 3TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM

·         2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices

·         Intel® C621 chipset

·         SATA3 (6Gbps); RAID 0, 1, 5, 10

·         Single LAN with Intel® Ethernet Controller I210-AT

·         Single LAN with Aquantia® AQC107 10G Ethernet Controller

·         Single LAN with Realtek RTL8211E PHY (dedicated IPMI)

·         ASPEED AST2500

·         7.1 channel HD Audio by Realtek ALC888S

Input / Output

·         8 SATA3 (6Gbps) ports

·         1 RJ45 Gigabit Ethernet LAN port

·         1 RJ45 10GBase-T Ethernet LAN port

·         1 RJ45 Dedicated IPMI LAN port

·         6 USB 3.1 Gen1 ports (4 rear, 2 headers)

·         4 USB 3.1 Gen2 ports (1 rear Type A, 1 rear Type C, 1 Type A header, 1 Type C header)

·         2 USB 2.0 ports (2 headers, Type A)

·         7.1 HD Audio with optical S/PDIF

·         1 VGA port via AST2500 BMC

·         2 COM ports (1 rear, 1 header)

·         1 TPM 2.0 Header

System BIOS

·         256Mb SPI Flash with AMI BIOS

Management

·         Intel® Node Manager

·         IPMI 2.0

·         SSM, SPM, SUM

·         SuperDoctor® 5

·         Watchdog

PC Health Monitoring

·         Monitors for CPU Cores, Chipset Voltages, Memory.

·         4+1 Phase-switching voltage regulator

·         Fans with tachometer monitoring

·         Status monitor for speed control

·         Pulse Width Modulated (PWM) fan connectors

·         Monitoring for CPU and chassis environment

·         Thermal Control for fan connectors

Chassis

·         4U Rackmountable / Tower

·         Optional Rackmount Kit

·         CSE-743TS-1200BP-SQ

Dimensions and Weight

·         17.8" (452mm)

·         7.0" (178mm)

·         25.5" (648mm)

·         71 lbs (32.2 kg)

·         Black

Front Panel

·         Power On/Off button

·         System Reset button

·         Power LED

·         Hard drive activity LED

·         Network activity LEDs

·         System Overheat / Fan Fail LED

·         2 front USB 3.0 Ports

Expansion Slots

·         4 PCI-E 3.0 x16 slots

·         3 PCI-E 3.0 x8 (in x16 slot)

·         M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1

·         Form Factor: 2242/2260/2280/22110

·         Key: M-Key

·         M.2 support RAID 0, 1 (up to RAID 5, 10), VROC key is required for RAID1

*NOTE: When M.2 slots C01 or C02 is installed, PCIe slot 1 is disabled. When M.2 C03 or M.2 C04 is installed, PCIe slot 4 works x8.

Drive Bays

·         8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)

·         3x 5.25" drive bays

Backplane

Supports 8 SATA3 or 8 SAS3 HDD

System Cooling

·         2 Super quiet PWM chassis fans (support up to 4 fans)

·         1 Super quiet rear fan with optimal fan speed control

Power Supply

1200W high-efficiency power supply w/ PMBus

·         1000W: 100-114.9 V, 50-60 Hz, 12 Amp

·         1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp

·         +3.3V / +5V / +12V / -12V / +5VSB

·           20A /  20A /   83A /  0.3A /   3A

·           20A /  20A /   99A /  0.3A /   3A

·         Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.

    Platinum Certified


Operating Environment

·         RoHS Compliant

·         Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

·         Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)

·         Operating Relative Humidity:
   8% to 90% (non-condensing)

·         Non-operating Relative Humidity:
   5% to 95% (non-condensing)
