| Product SKUs |
 |

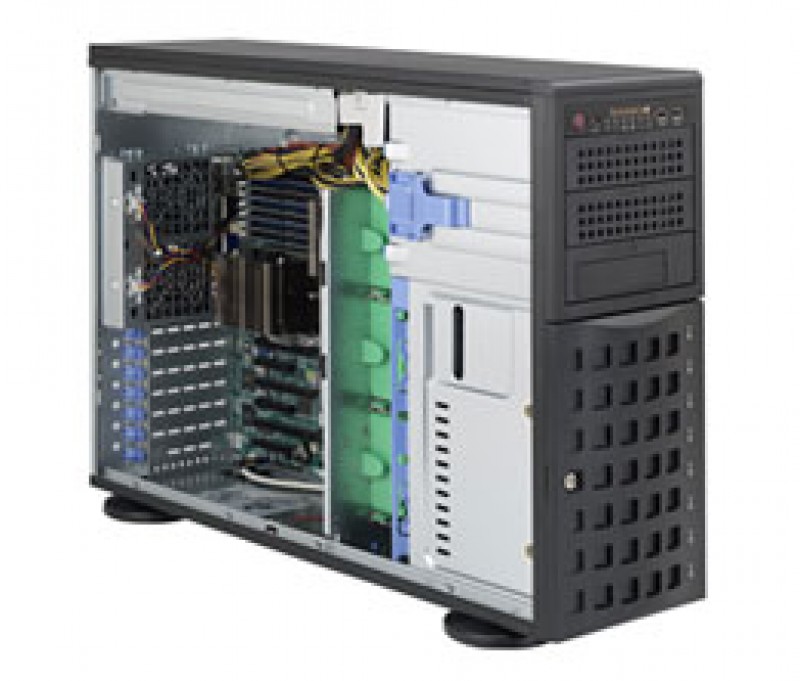

| CSE-745TQ-920B |
- SuperChassis 745TQ-920B (Black)
|
| |
| Form Factor |
|
Tower / 4U chassis support for max. motherboard size
- 13.68" x 13" (34.7cm x 33cm), ATX, E-ATX |
| |
| Processor Support |
|
| Supports dual, single Intel® / AMD processors |
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| |
| Expansion Slots |
|
| 7x PCI expansion slots |
| |
| Drive Bays |
|
| Hot-swap |
- 8x 3.5" Hot-swap SAS/SATA Drive Bays
- SAS or enterprise SATA HDD only recommended
|
| Peripheral Bay(s) |
- 2x 5.25" Peripheral Drive Bay
- 1x 5.25" Bay that fits 3.5" bay devices
|
| |
| SAS / SATA Backplane |
|
| SAS / SATA Hard Drive Backplane with SES2 |
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power Fail LED
|
| Ports |
|
|
 |
| System Cooling |
|
| Fans |
- 3x 5000 RPM Hot-swap PWM Cooling Fans
- 2x 5000 RPM Hot-swap Rear Exhaust
PWM Fans
|
| |
| System Monitoring |
|
| Chassis intrusion switch |
| |
|
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C ~ 60°C (-40°F ~ 140°F)
|
| Operating Relative Humidity Range |
- 8% ~ 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply with Power Distributor |
| 920W high-efficiency (94+%) power supply with PMBus |
| AC Input |
- 100-240 V, 50-60 Hz, 11-4.5 Amp
|
| DC Output |
- 4 Amp @ +5V standby
- 75 Amp @ +12V
|
| With Power Distributor |
- +5V: 30 Amp
- +3.3V: 24 Amp
- -12V: 0.6 Amp
|
| Certification |
  Platinum Certified
[ Test Report ] |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- USA - UL listed, FCC
- Canada - CUL listed
- China - CCC Mark
- Europe/CE Mark
- EN 60950/IEC 60950-Compliant
- Germany - TUV Certified
|
|
