| Width |
440mm |
| Depth |
100mm |
| Height |
43.2mm |
| Weight |
3.34lb (1.513kg) |
| Hardware |
Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC |
| Connectivity |

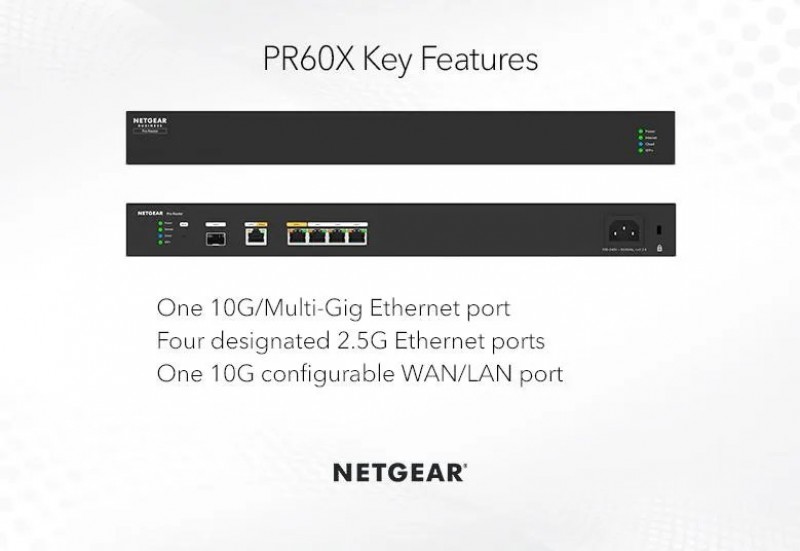

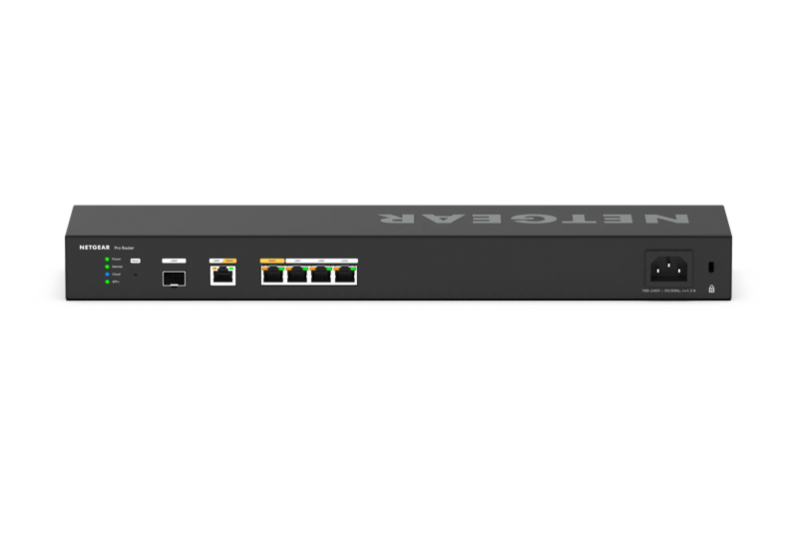

1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
1 x 2.5G/1G RJ-45 (WAN)
3 x 2.5G/1G RJ-45 (LAN)
1 x 10G/1G SFP+ (LAN)
|
| Performance |
LAN-WAN Throughput: 2.4Gbps for 2.5G WAN port. 9.4Gbps for 10G WAN port
WAN-LAN Throughput: 10Gbps max WAN with 17.5Gbps max LAN, when using WAN2 port. 2.5Gbps max WAN with 27.5Gbps max LAN, when using WAN1 port only
|
| LAN/VLAN |
Maximum Number of VLANs is 8
DHCP Server (limit is 8)
802.1Q VLAN
|
| Security |
Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port |
| VoIP SIP ALG |
Yes |
| Networking |
ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports |
| VPN |
IPSec Site-to-Site |
| Encryption/Authentication |
3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5 |
| Key Exchange |
IKEv1, IKEv2, Pre-shared Key |
| Management Options |
Insight Remote Cloud Management
Web GUI
|
| Logging |
Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics |
| Major Regulatory Compliance Environment |
RoHS |
| Safety |
CE/LVD, CSA |
| EMI |
FCC Part 15 Class B, CE mark |
| Operating Temperature |
0° to 40°C (32° to 104° F) |
| Storage Temperature |
-20° to 70° C (-4° to 158° F) |
| Humidity |
Operating humidity 90% maximum relative humidity, non-condensing,
Storage humidity 95% maximum relative humidity, non-condensing
|
| Power |
AC 100-240V, 50/60Hz, 1.3A
Electrical Specifications Power adapter input localized to regions
|
