Gigabyte MS33-AR0, 1xSKT LGA 4677, 4/5Gen. Intel Xeon Scalable, C741, SATA, NVMe, 1xM.2, 2x10GbE, IPMI

GIGABYTE MS33-AR0 is a server motherboard designed for Intel® Xeon® Scalable 4th and 5th Gen processors (LGA4677 socket), also compatible with Intel® Xeon® CPU Max Series. Built in E-ATX form factor (304.8 mm x 330.2 mm), it delivers high performance and scalability for data centers and enterprise environments.

It supports 16 DDR5 RDIMM/3DS RDIMM slots in an 8-channel architecture, with speeds up to 5600 MT/s (1 DPC) or 4400 MT/s (2 DPC). Expansion options include 7 PCIe 5.0 slots (1 × x16, 3 × x16/x8, 3 × x8), 2 MCIO 8i connectors (PCIe 5.0 x8), and 2 M.2 PCIe 3.0 x4 slots.

The board features dual 10 GbE LAN (Intel X710-AT2), a dedicated management port with ASPEED AST2600 BMC and GIGABYTE Management Console. Additional SlimSAS and SATA connectors provide flexible storage configurations.

Accelerating Artificial Intelligence and Leading Efficiency

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Redefine Performance with 4th/5th Gen Intel® Xeon® Scalable Processors and Intel® Xeon® CPU Max Series



Acceleratorsbuilt-in*

Increase ROI while improving efficiency and performance

Up to 64cores

More tasks can be done simultaneously and faster with dedicated cores

DDR5support

Increased memory frequency and throughput with DDR5 RDIMM support

64GBHBM**

High bandwidth in-package memory massively speeds up data-intensive workloads

PCIe 5.0lanes

Increased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators

CXL 1.1support

Improve performance via memory coherency and direct accelerator memory access

* Different on-chip accelerators are supported depending on CPU SKUs and requires one-time activation. Please visit Intel's official website or contact technical support for details.
** HBM is an Intel Xeon CPU Max Series only feature. Please check the server specifications for more information on support for the Intel Xeon CPU Max Series.

Select GIGABYTE for the latest Gen Intel® Xeon® Platform



High CPU Performance

The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.



Energy Efficiency

Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.



Optimal Price

GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.



Ease of Administration

GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.



Continuous Operation

Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.

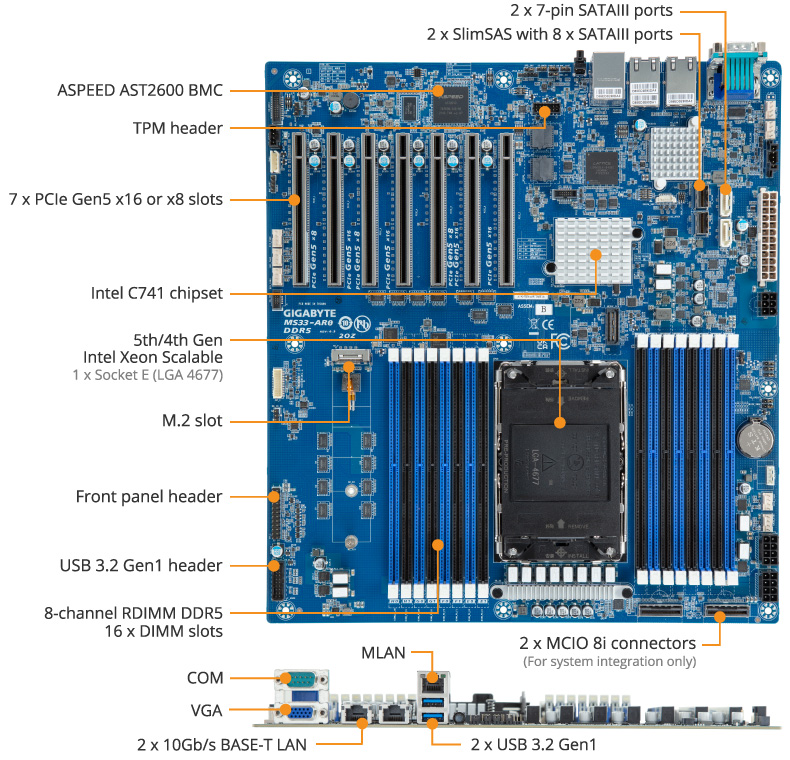

MS33-AR0 Product Overview

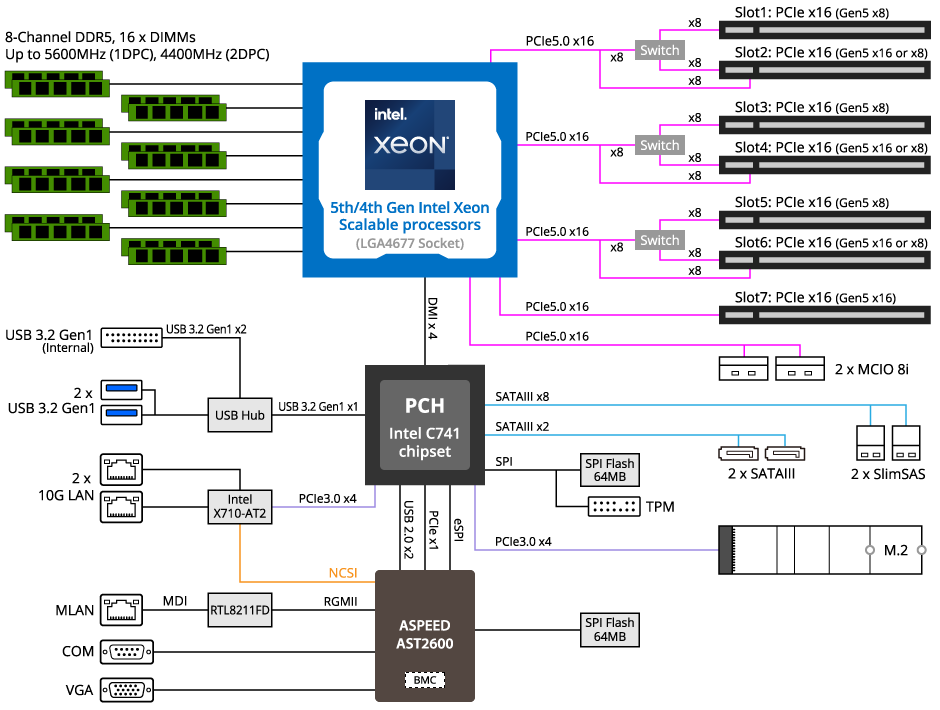

MS33-AR0 Block Diagram



Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.



Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

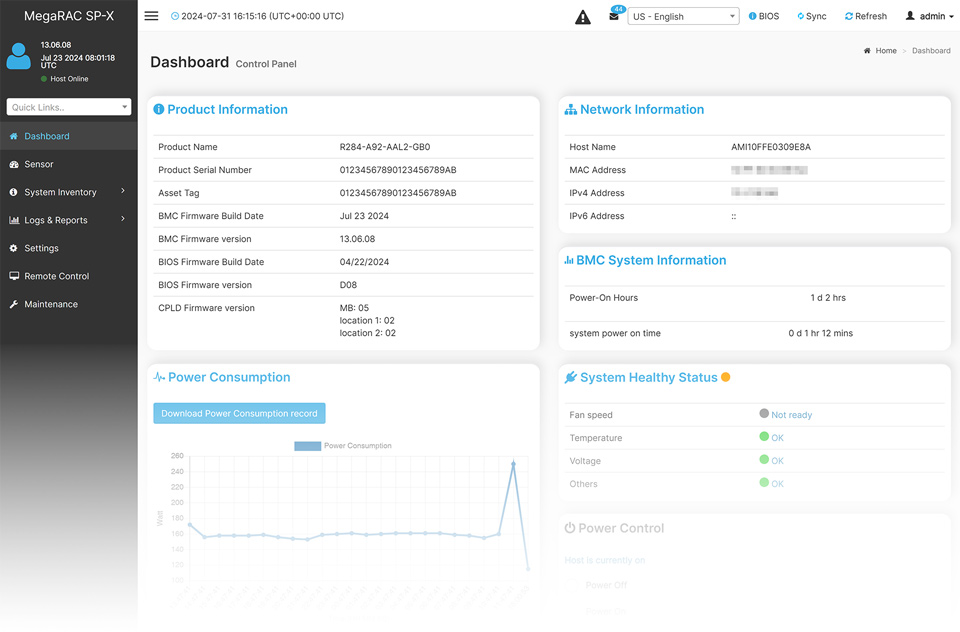

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

•  Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
•  Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.



GIGABYTE Server Management (GSM)

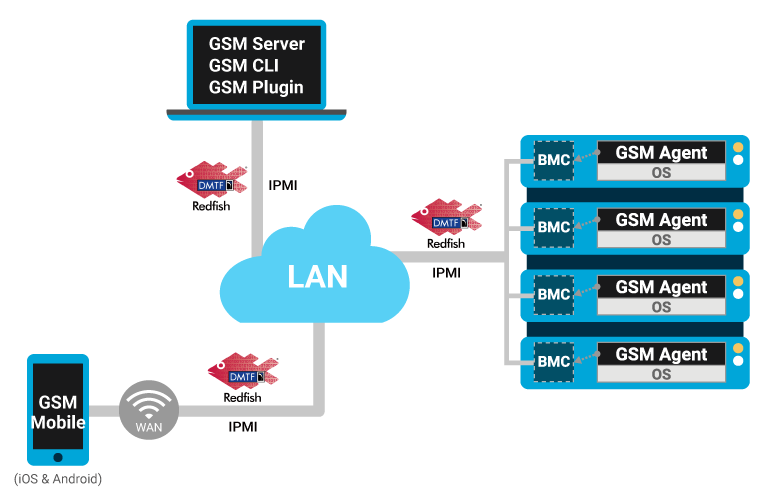

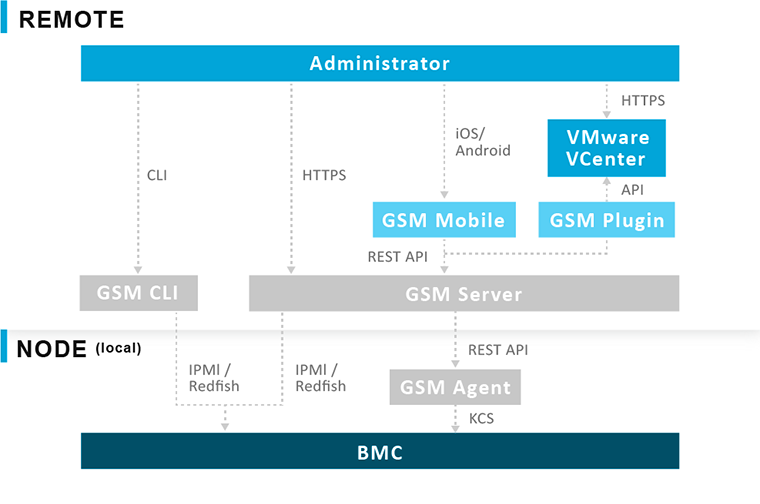

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
• GSM CLI: A command-line interface for monitoring and managing remotely.
• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
